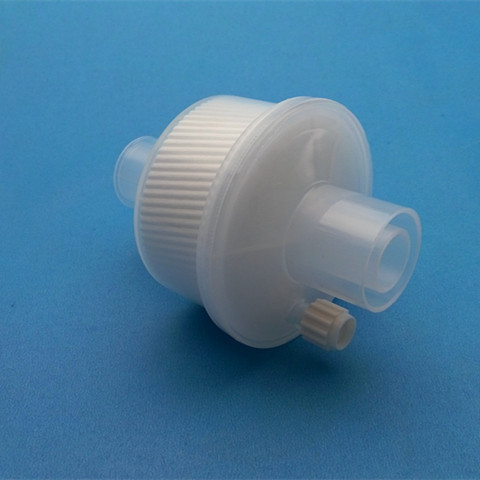

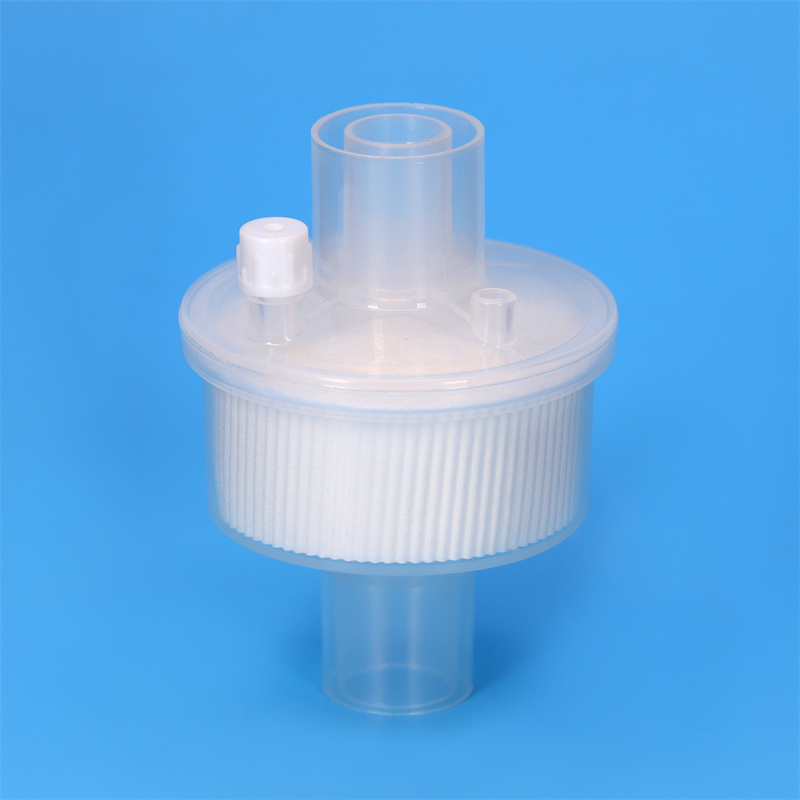

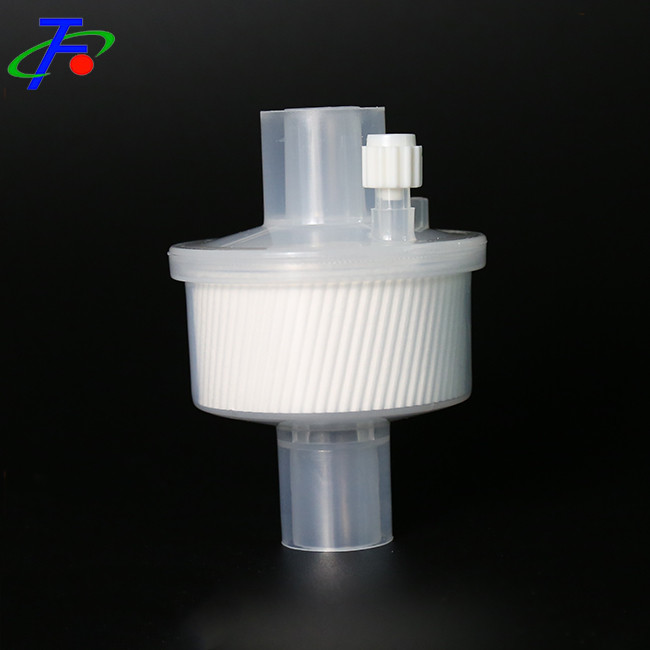

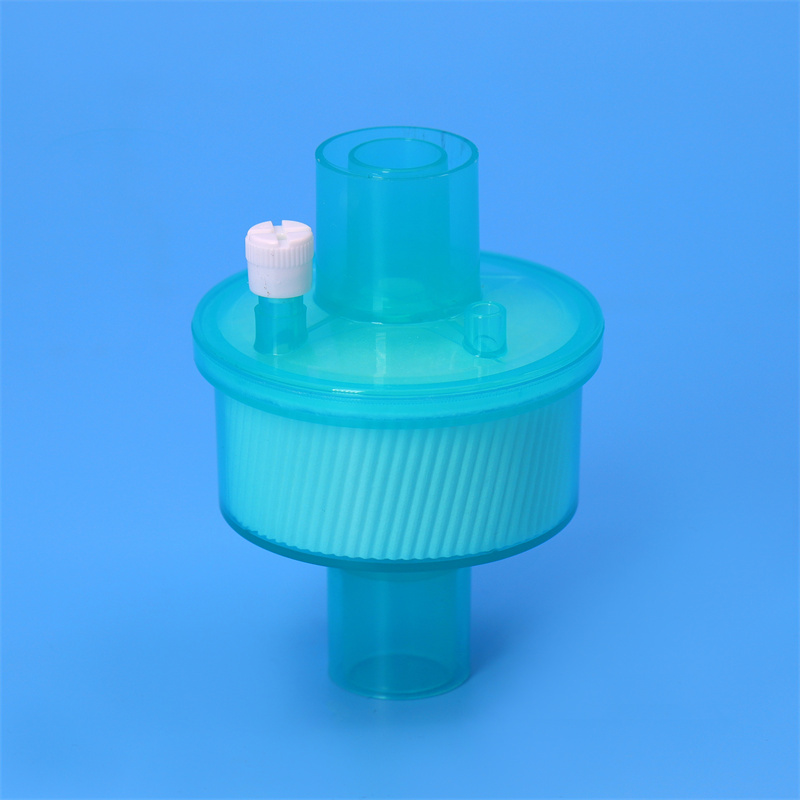

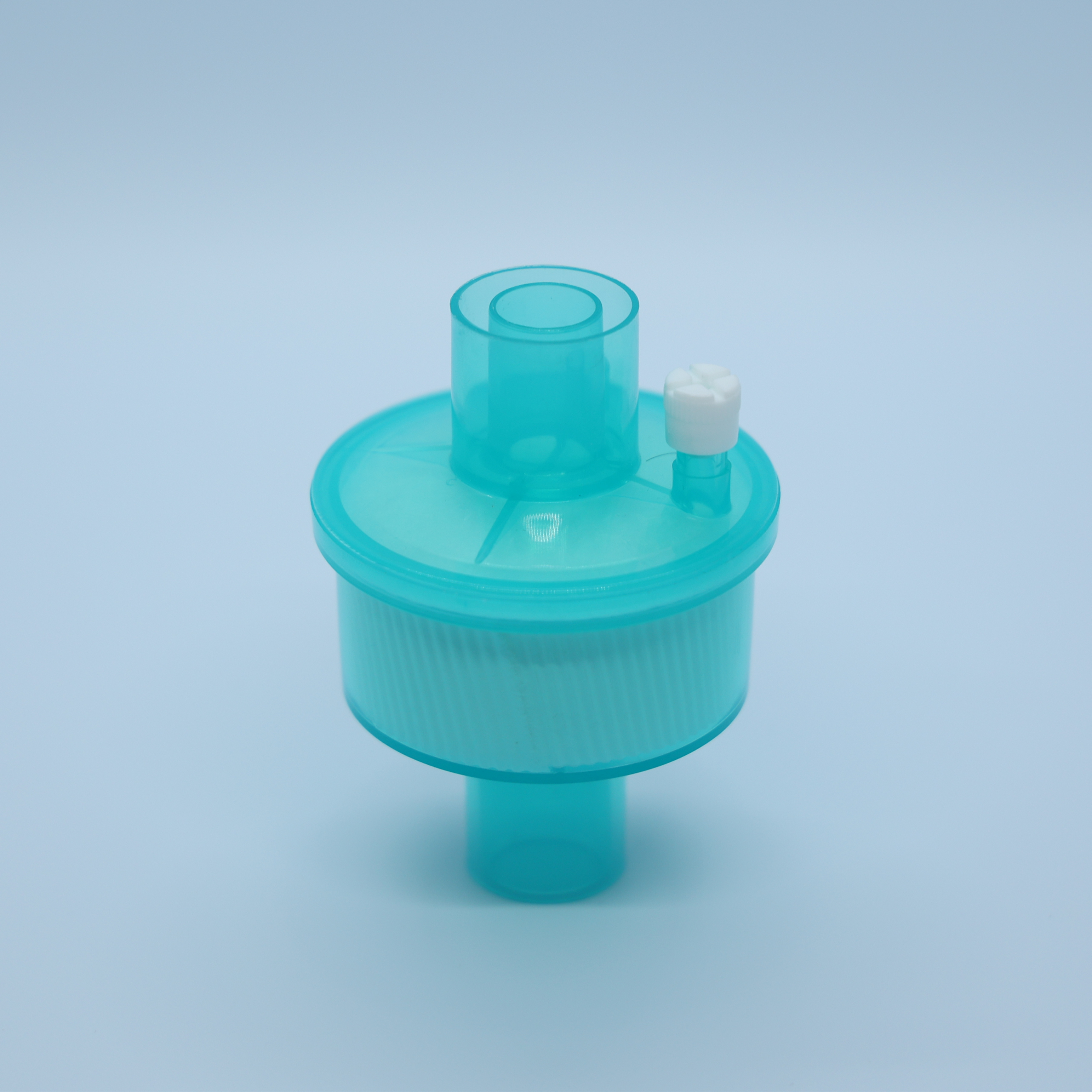

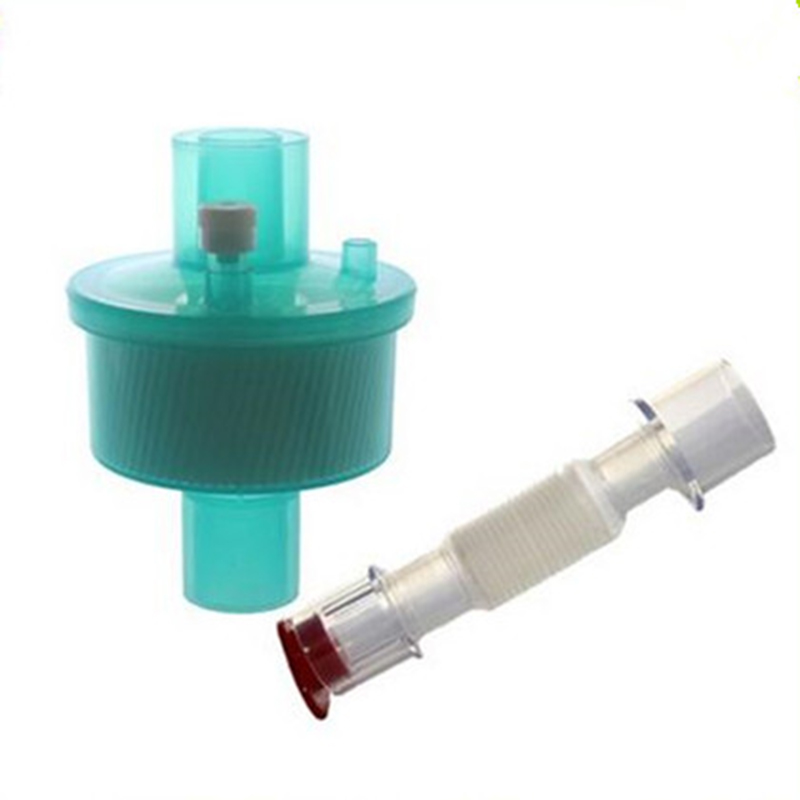

Medical-Consumable Hospital Hme Filter

5 0 Reviews
ZHENFU MEDICAL offers a range of HMEF for use within Anesthesia, Respiratory and Critical Care clinical areas. Indicated for use with patients whose upper airways are being bypassed by an artificial tracheal airway or receiving artificial ventilator support. This removes the patient’s ability to filter and humidify inspired gases. Medical gases are much colder and dryer than those, which we would normally breathe so the problem is exacerbated during Anesthesia and Ventilation.
Connectors:
Material:
Size:
Dead Speace:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • ZF-001

  • ZHENFU

REF

ZF-001

Version

Adult

Housing Material

PP

Media

Electrical Cotton

HME paper

BFE

99.9999%

VFE

99.999%

Resistance @ 30L/min

100pa

Resistance @ 60L/min

240pa

Resistance @ 90L/min

430pa

Moisture output

34mgH2O@VT 500 ml

Tidal Volume Range

250ml-1500ml

Dead Space

60ml

Connector

22F/15M-22M/15F

Sampling Port

Yes

Weight

30g

Size

H:85mm;W:62mm
