Hme Ttracheostomy Filter

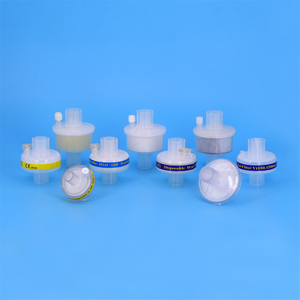

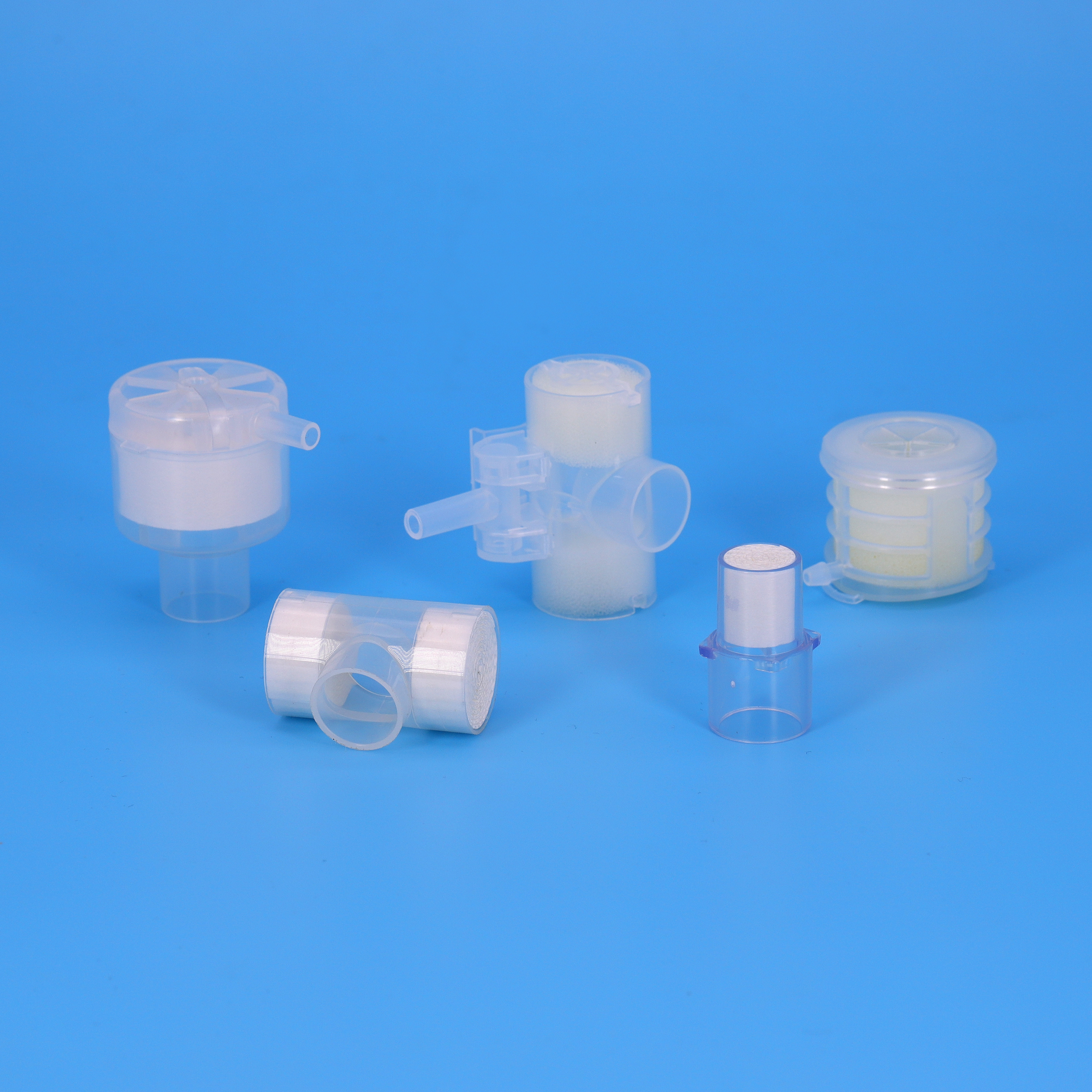

5 0 ReviewsTracheostomy HME filters are used in anesthesia, respiratory and intensive care clinical areas. Indicated for use with patients whose upper airways are being bypassed by an artificial tracheal airway or receiving artificial ventilator support.Some products have oxygen port and suction port.Quantity:
-
ZF-051
Introducing Breathing System Filters, a disposable product designed with a gas sampling port for easy use. Made from K-Resin and meeting ISO standards, these filters are lightweight and sterilized with Ethylene Oxide. Constructed from non-toxic PVC, ABS, and PP plastics, they provide good sealing, low breathing flow resistance, and a small dead space. With a 3-layer filtering medium and high efficiency performance, these Class I and Class II filters also offer insulation and moisturizing benefits.
REF
ZF-051
Version
Adult
Housing Material
PP
Media
HME paper
Resistance@ 30L/min
50pa
Resistance@ 60L/min
140pa
Resistance@ 90L/min
250pa
Moisture loss(mg/H2 O/L)
9.0@ VT 500 ml
Moisture output(mg H2O@VT)
24@ VT 500 ml
Tidal Volume Range
50-1500ml
Dead Space
18ml
Connector
15F
Oxygen Port
Yes
Suction Port
Yes
Weight
9g
Introducing Breathing System Filters, a disposable product designed with a gas sampling port for easy use. Made from K-Resin and meeting ISO standards, these filters are lightweight and sterilized with Ethylene Oxide. Constructed from non-toxic PVC, ABS, and PP plastics, they provide good sealing, low breathing flow resistance, and a small dead space. With a 3-layer filtering medium and high efficiency performance, these Class I and Class II filters also offer insulation and moisturizing benefits.
REF
ZF-051
Version
Adult
Housing Material
PP
Media
HME paper
Resistance@ 30L/min
50pa
Resistance@ 60L/min
140pa
Resistance@ 90L/min
250pa
Moisture loss(mg/H2 O/L)
9.0@ VT 500 ml
Moisture output(mg H2O@VT)
24@ VT 500 ml
Tidal Volume Range
50-1500ml
Dead Space
18ml
Connector
15F
Oxygen Port
Yes
Suction Port
Yes
Weight
9g
