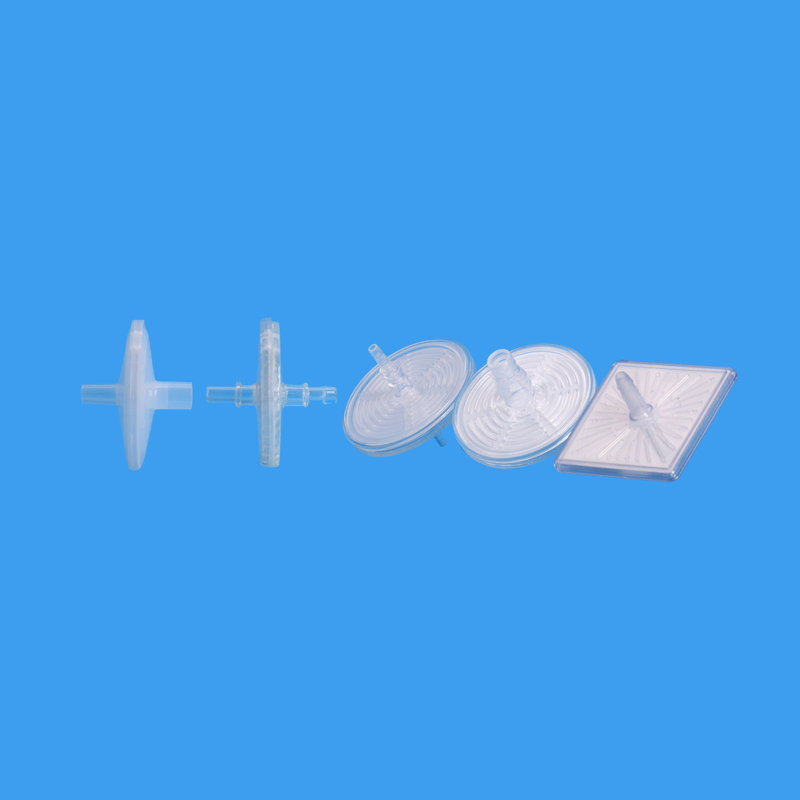

Suction Filter

5 0 Reviews

Suction filters filter bacteria and viruses during the operation of suctioning. It can not only prevent the patient's sputum from contaminating the suction machine, but also prevent the patient from inhaling the bacteria and viruses in the suction suction, effectively avoiding the occurrence of cross-infection, and reducing the loss of the suction device. The Zhenfu suction filter has different connection sizes and fittings for most machines and pipes on the market, and it should be located in a straight line between the inlet of the suction sputum pump and the sputum suction bottle. The membrane material of the filter is PTFE hydrophobic membrane, and the pore size is 0.2µm, 0.45µm, 1µm and 2µm to choose from. Different pore sizes will cause different flow loss and water blocking and pressure resistance effects.

Quantity:
Availability:





Inquire Add to Basket

Product Description

REF	ZF-003	ZF-012	ZF-055	ZF-009	ZF-156	ZF-157
Housing Material	ABS	PP	PP	PP	PP	PP
Media	PP/Glass Microfibre	PP/Glass Microfibre	PP/Glass Microfibre	PP/Glass Microfibre	PP/Glass Microfibre	PP/Glass Microfibre
Connector	11mm-14.5mm Stepped Hose Barbs	5.5mm-9.5mm Stepped Hose Barbs	4mm-8mm Stepped Hose Barbs	6mm-8mm Stepped Hose Barbs	5.5mm-9.5mm Stepped Hose Barbs- 1/8 G Screw Thread 10 mm	4mm-8mm Stepped Hose Barbs
BFE	99.999%	99.999%	99.999%	99.999%	99.999%	99.999%
Port Size	0.3µm	0.3µm	0.3µm	0.3µm	0.3µm	0.3µm
Weight	18.5g	10.5g	10.5g	15g	10.5g	10.5g
Max Operating Pressure	20psi	20psi	20psi	20psi	20psi	20psi
Max Operating Temp	60℃	60℃	60℃	60℃	60℃	60℃
Effective Filtration Area	24.6cm2	15.2cm2	15.2cm2	15.2cm2	15.2cm2	15.2cm2
Size	H:60mm; W:64mm	H:52.5mm; W:50mm	H:52.5mm; W:50mm	H:54mm; W:58mm	H:52.5mm; W:50mm	H:52.5mm; W:50mm

REF	ZF-013	ZF-123	ZF-010	ZF-173	ZF-080
Housing Material	PP	PP	PP	PP	PP
Media	Hydrophobic PTFE	Hydrophobic PTFE	Hydrophobic PTFE	Hydrophobic PTFE	Hydrophobic PTFE
BFE	99.999%	99.999%	99.999%	99.999%	99.999%
Port Size	0.2µm	0.2µm	0.2µm	0.2µm	0.2µm
Weight	10.5g	10.5g	15g	13g	15g
Connector	5.5mm-9.5mm Stepped Hose Barbs	4mm-8mm Stepped Hose Barbs	6mm-8mm Stepped Hose Barbs	8M-9F/11M	5.5mm-9.5mm Stepped Hose Barbs
Max Operating Pressure	20psi	20psi	20psi	20psi	20psi
Effective Filtration Area	15.2cm2	15.2cm2	15.2cm2	24.6cm2	15.2cm2
Max Operating Temp	60℃	60℃	60℃	60℃	60℃
Size	H:52.5mm; W:50mm	H:52.5mm; W:50mm	H:54mm; W:58mm	H:47mm; W:64mm	H:54mm; W:58mm

REF	ZF-047	F-061	ZF-181	ZF-005
Housing Material	ABS	ABS	ABS	ABS
Media	Hydrophobic PTFE	Hydrophobic PTFE	Hydrophobic PTFE	Hydrophobic PTFE
BFE	99.999%	99.999%	99.999%	99.999%
Port Size	0.2µm	0.2µm	0.2µm	0.2µm
Weight	18g	16g	18.5g	18.5g
Connector	4mm-9.5mm Stepped Hose Barbs	5mm-8mm Stepped Hose Barbs	8mm Stepped Hose Barbs	8mm Stepped Hose Barbs
Max Operating Pressure	20psi	20psi	20psi	20psi
Effective Filtration Area	24.6cm2	30cm2	24.6cm2	24.6cm2
Max Operating Temp	60℃	60℃	60℃	60℃
Size	H:64.5mm;W:64.5mm	H:53mm;W:62mm	H:54mm;W:64mm	H:54mm;W:64mm

REF	ZF-015	ZF-220	ZF-280
Housing Material	ABS	ABS	ABS
Media	Hydrophobic PTFE	Hydrophobic PTFE	Hydrophobic PTFE
BFE	99.999%	99.999%	99.999%
Port Size	0.2µm	0.2µm	0.2µm
Weight	18.5g	18.5g	39.2g
Connector	11mm-14.5mm Stepped Hose Barbs	11mm-14.5mm Stepped Hose Barbs; 15F/18M	11mm-14.5mm Stepped Hose Barbs
Max Operating Pressure	20psi	20psi	20psi
Effective Filtration Area	24.6cm2	24.6cm2	60cm2
Max Operating Temp	60℃	60℃	60℃
Size	H:60mm;W:64mm	H:50mm;W:64.6mm	H:60mm;W:92mm
