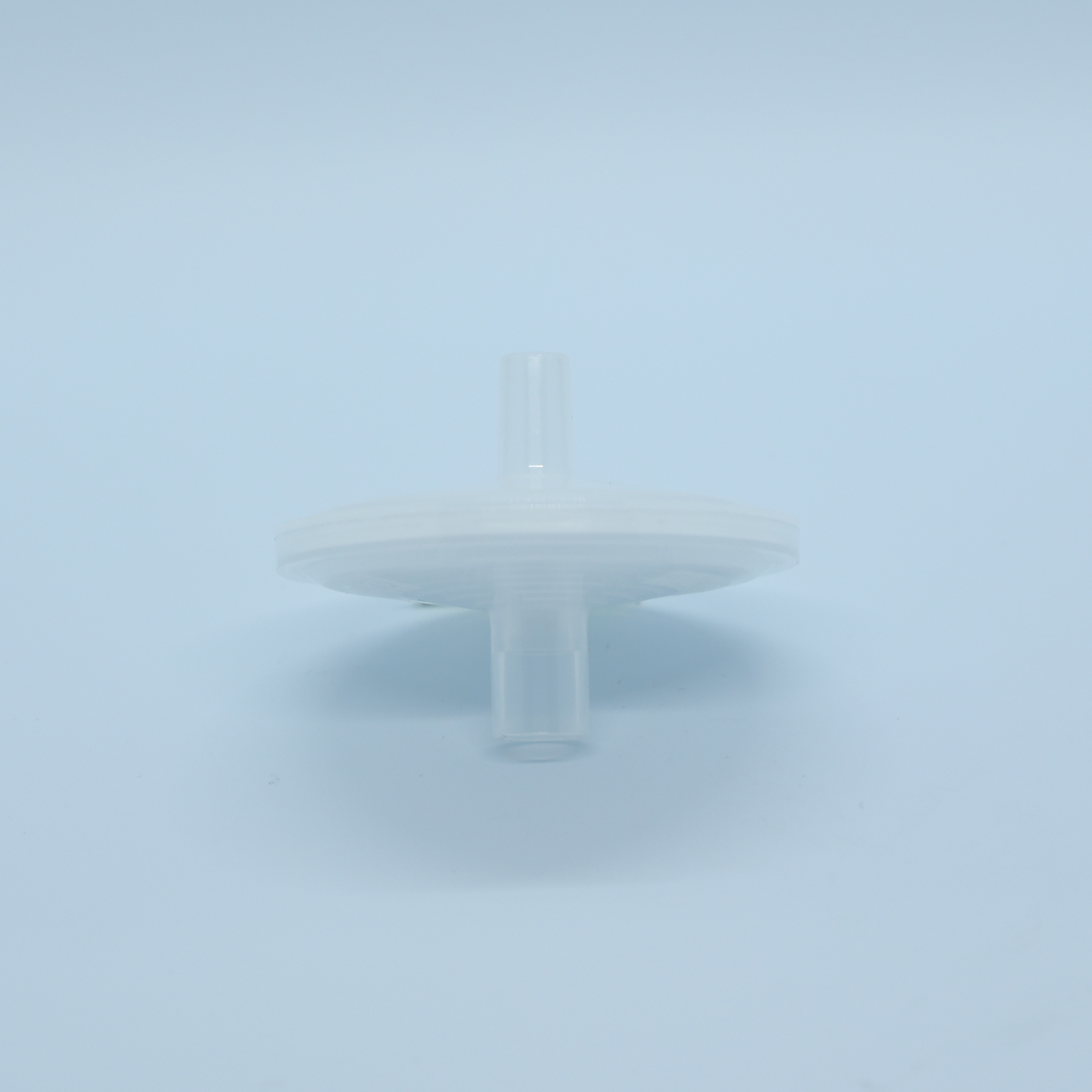

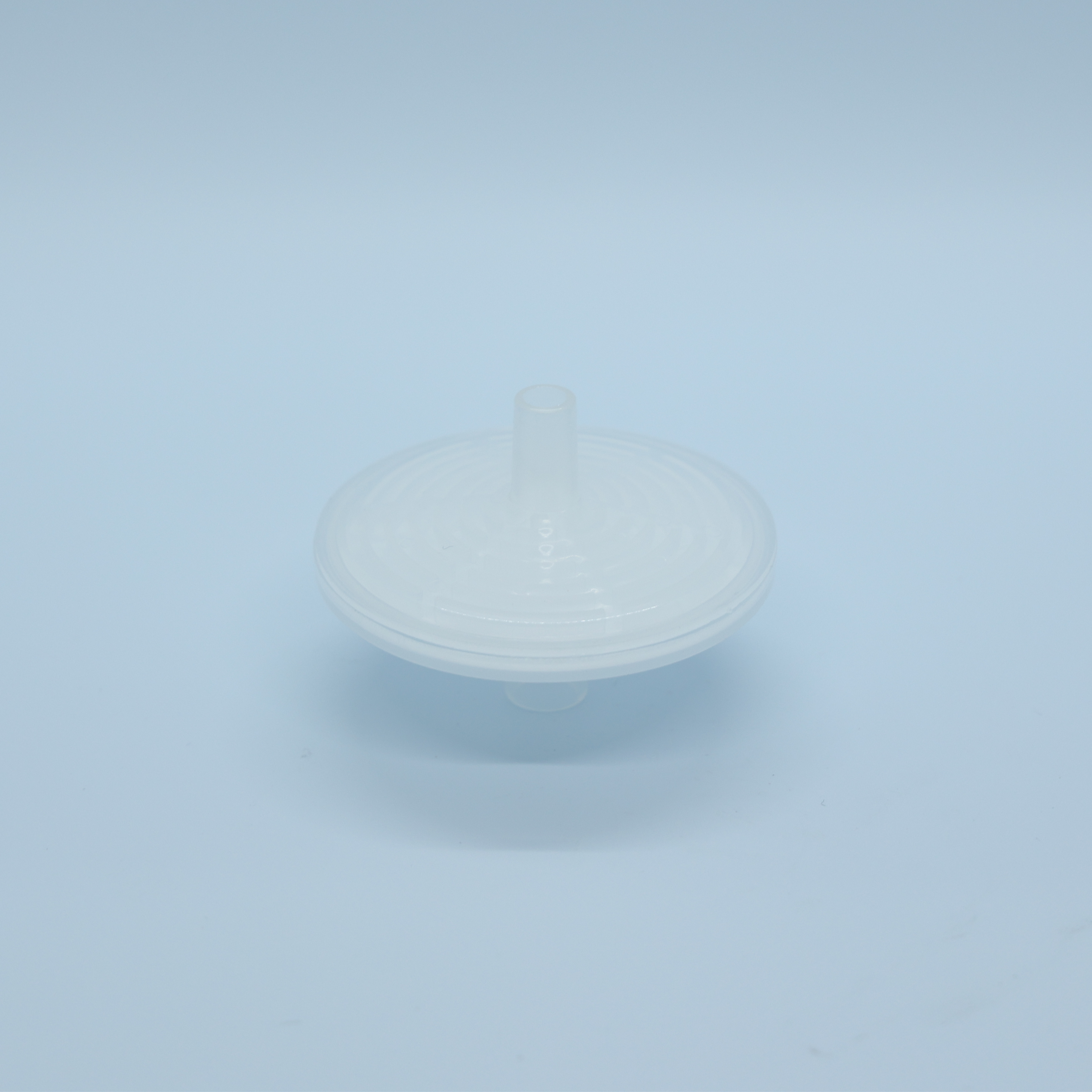

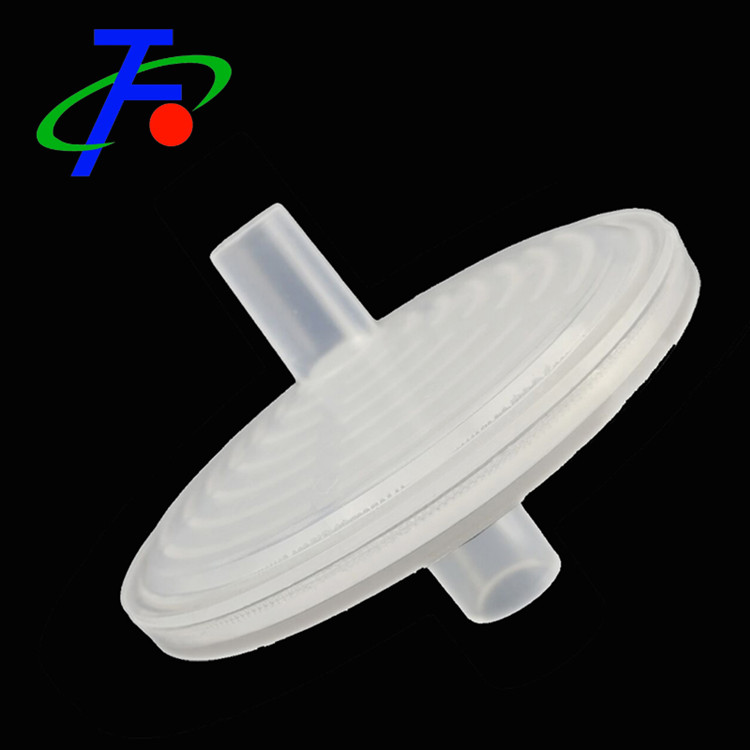

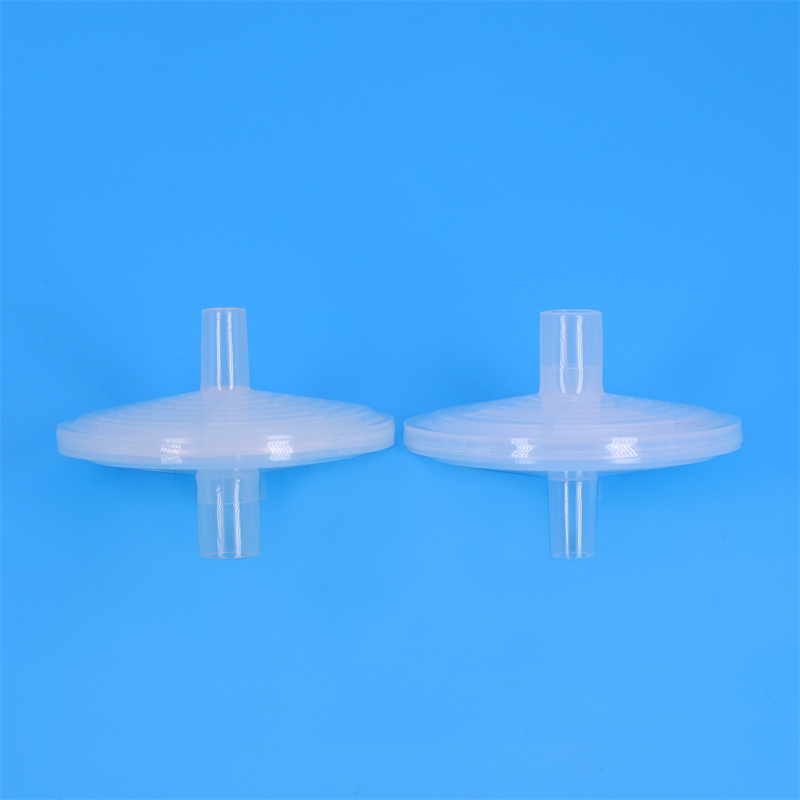

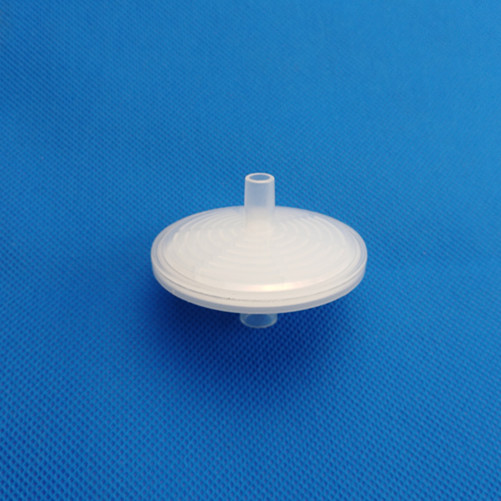

Suction Filter

5 0 Reviews
Suction filters filter bacteria and viruses during the operation of suctioning. It can not only prevent the patient's sputum from contaminating the suction machine, but also prevent the patient from inhaling the bacteria and viruses in the suction suction, effectively avoiding the occurrence of cross-infection, and reducing the loss of the suction device. The Zhenfu suction filter has different connection sizes and fittings for most machines and pipes on the market, and it should be located in a straight line between the inlet of the suction sputum pump and the sputum suction bottle. The membrane material of the filter is PTFE hydrophobic membrane, and the pore size is 0.2µm, 0.45µm, 1µm and 2µm to choose from. Different pore sizes will cause different flow loss and water blocking and pressure resistance effects.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • ZF-173



REF

ZF-173

Housing Material

PP

Media

Hydrophobic PTFE Media Disc

BFE

99.999%

Port Size

0.2µm

Weight

13g

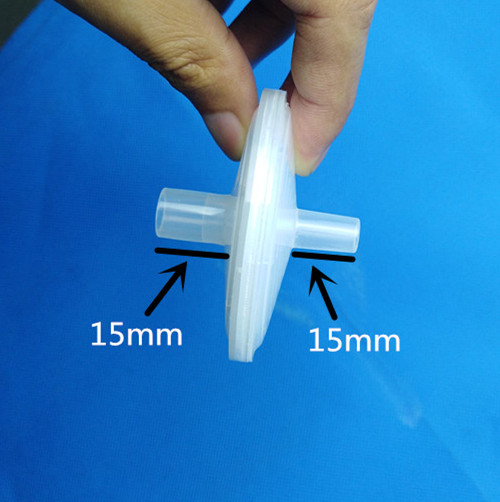

Connector

8M-9F/11M

Max Operating Pressure

20psi

Effective Filtration Area

24.6cm2

Max Operating Temp

60℃

Size

H:47mm;W:64mm
