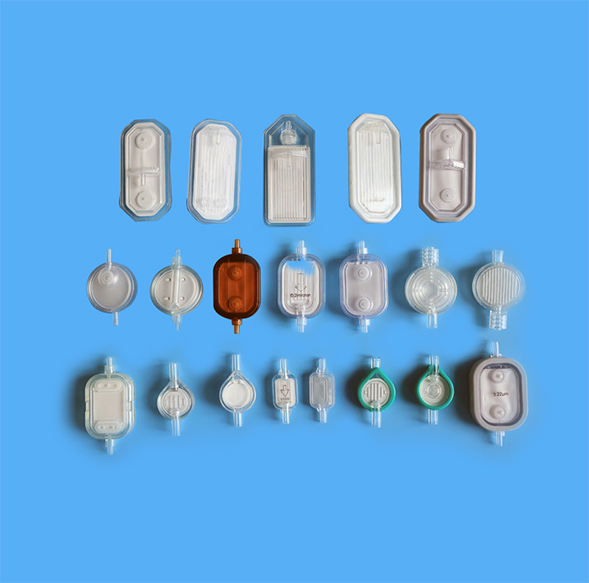

Infusion Filter
5 0 ReviewsIV Infusion Set Filters is used to administer intravenous medication. The filter removes contaminants including bacteria, fungi and endotoxins from intravenous patient access lines. The filter also removes air bubbles from the line.Our 0.2 µm PES will eliminate Brevundimonas diminuta, and our 1.2 µm PES eliminates Candida albicans.
ZHENFU IV filters are particularly suitable for the following filtration applications:
- Aqueous IV solutions
- IV therapy
- Chemotherapy
- Antibiotic therapy
- Nutrient admixture, TPN(Total Parenteral Nutrition) and lipid solutions (1.2 µm)
- Drug delivery therapy (recommended for oncology drugs)
- Apheresis solutions
- Dialysate for kidney dialysisQuantity:
REF
ZF-022
ZF-023
ZF-024
Size
W:29mm;D:7.47mm;L:40mm
W:29mm;D:7.47mm;L:40mm
W:29mm;D:7.47mm;L:40mm
Housing Material
ABS
ABS
ABS
Filter
PES
PES
PES
Vent
PTFE
PTFE
PTFE
Port size
5µm
1.2µm
0.2µm
Weight
5.8g
5.8g
5.8g
Connector
3.2mm-3.4mm Tube
3.2mm-3.4mm Tube
3.2mm-3.4mm Tube
Water Breakthrough >40 m/ H2O >40 m/ H2O >40 m/ H2O Water Breakthrough
0.15 - 0.3 bar
0.7 - 1.0 bar
3.7 - 4.8 bar
Water flow rate
(1000ml-1500ml)/10min
(800ml-1000ml)/10min
(180ml-210ml)/10min
Priming Volume 2.12ml 2.12ml 2.12ml Effective Filtration Area
7.36cm2
7.36cm2
7.36cm2
Sterilization
E.O
E.O
E.O
Applications
Gravity Infusion
Gravity Infusion
Gravity Infusion
Packing
3000pcs/carton
3000pcs/carton
3000pcs/carton
REF
ZF-WRQ-022/ZF-WRQ-023/ZF-WRQ-024
ZF-WRQL-022/ZF-WRQL-023/ZF-WRQL-024
Size
ɸ31mm
ɸ31mm
Housing Material
ABS
ABS
Filter
PP
PP
Port size
5µm/1.2µm/0.2µm
5µm/1.2µm/0.2µm
Weight
4.6g
4.6g
Connector
IN: Female luer lock
OUT: Male luer lock
IN: Female luer lock
OUT: Rotating Male luer lock
Max bursting pressure
116psi 116psi Max operating temp
40℃ 40℃ Min Water Bubble Point
5µm-0.15-0.3bar
1.2µm-0.7-1.0bar
0.2µm-3.7-4.8bar
5µm-0.15-0.3bar
1.2µm-0.7-1.0bar
0.2µm-3.7-4.8bar
Water flow rate
5µm-1500ml/10min@1m
1.2µm-
0.2µm-215
5µm-1500ml/10min@1m
1.2µm-
0.2µm-215
Priming Volume
1.28ml 1.28ml Effective Filtration Area
5.3cm2
5.3cm2
Sterilization
E.O
E.O
Applications
Epidural surgery
Epidural surgery
REF
ZF-177/ZF-176 /ZF-175
ZF-087/ZF-090/ZF-091
Size
ɸ22mm
ɸ22mm
Housing Material
ABS
ABS
Filter
PES
PES
Port size
5µm/1.2µm/0.2µm
5µm/1.2µm/0.2µm
Weight
1.6g
1.6g
Connector
2.2mm-3.0mm Tube
2.2mm-3.0mm Tube
Min Water Bubble Point
5µm-0.15-0.3bar
1.2µm-0.7-1.0bar
0.2µm-3.7-4.8bar
5µm-0.15-0.3bar
1.2µm-0.7-1.0bar
0.2µm-3.7-4.8bar
Max Operating Pressure
8 bar (116 psi)
8 bar (116 psi)
Max Operating Temp
40℃
40℃
Effective Filtration Area
3cm2
3cm2
Water flow rate
5µm-860ml/10min@1m
1.2µm-
0.2µm-
5µm-860ml/10min@1m
1.2µm-
0.2µm-
Priming Volume
0.5ml 0.5ml Sterilization
E.O
E.O
Applications
Pressure Infusion
Pressure Infusion
