Infusion Filter

5 0 Reviews

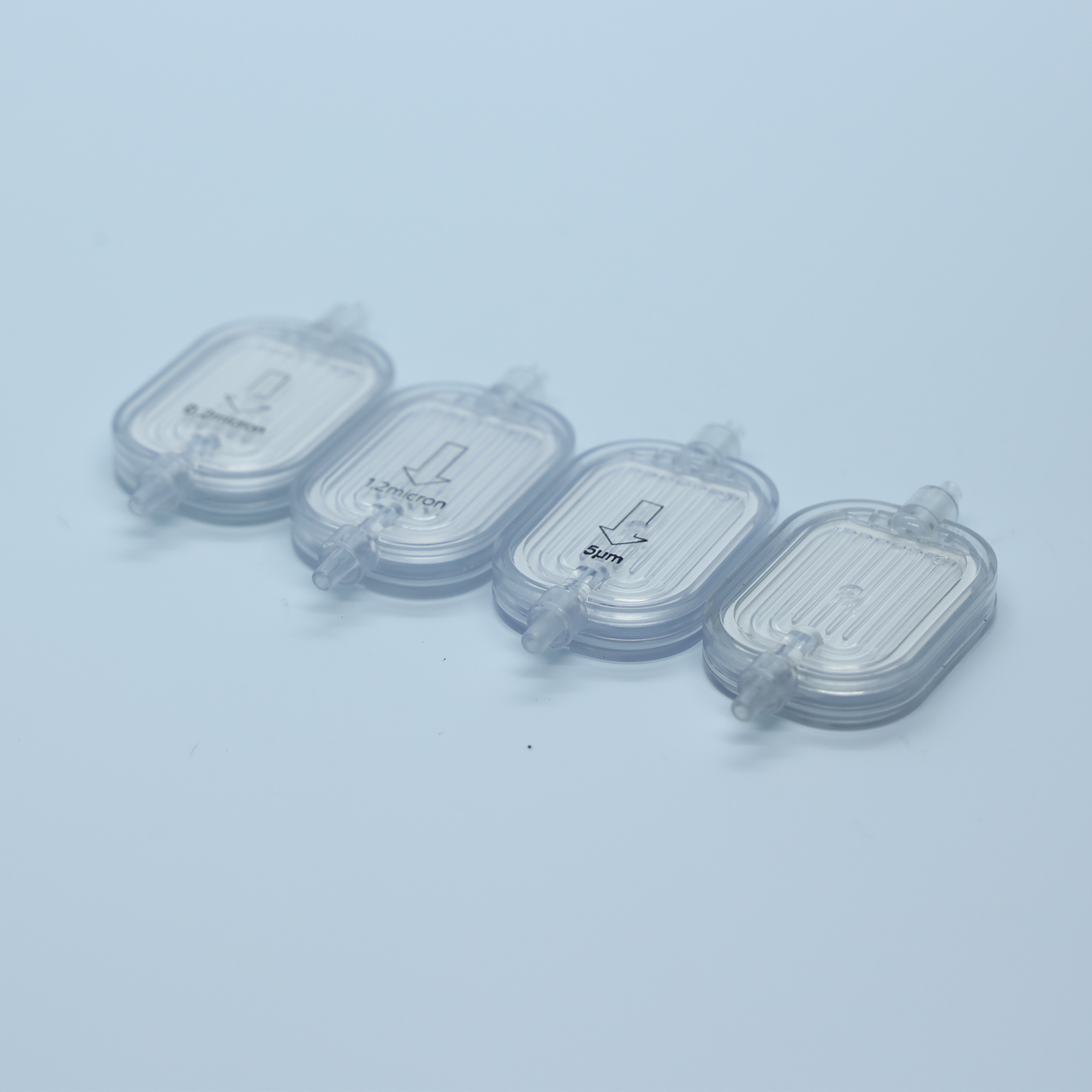

IV Infusion Set Filters is used to administer intravenous medication. The filter removes contaminants including bacteria, fungi and endotoxins from intravenous patient access lines. The filter also removes air bubbles from the line.Our 0.2 µm PES will eliminate Brevundimonas diminuta, and our 1.2 µm PES eliminates Candida albicans.
ZHENFU IV filters are particularly suitable for the following filtration applications:
- Aqueous IV solutions
- IV therapy
- Chemotherapy
- Antibiotic therapy
- Nutrient admixture, TPN(Total Parenteral Nutrition) and lipid solutions (1.2 µm)
- Drug delivery therapy (recommended for oncology drugs)
- Apheresis solutions
- Dialysate for kidney dialysis
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

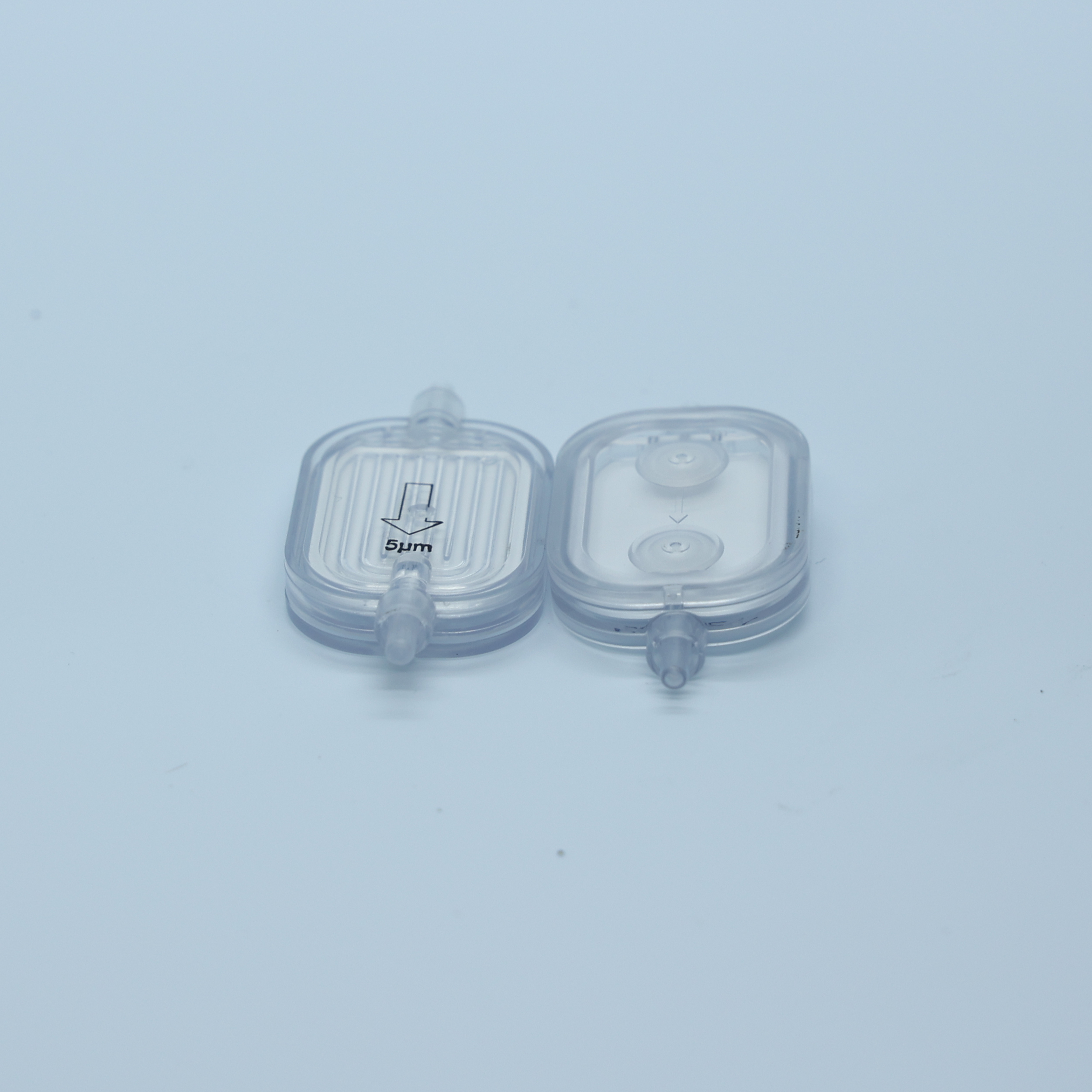

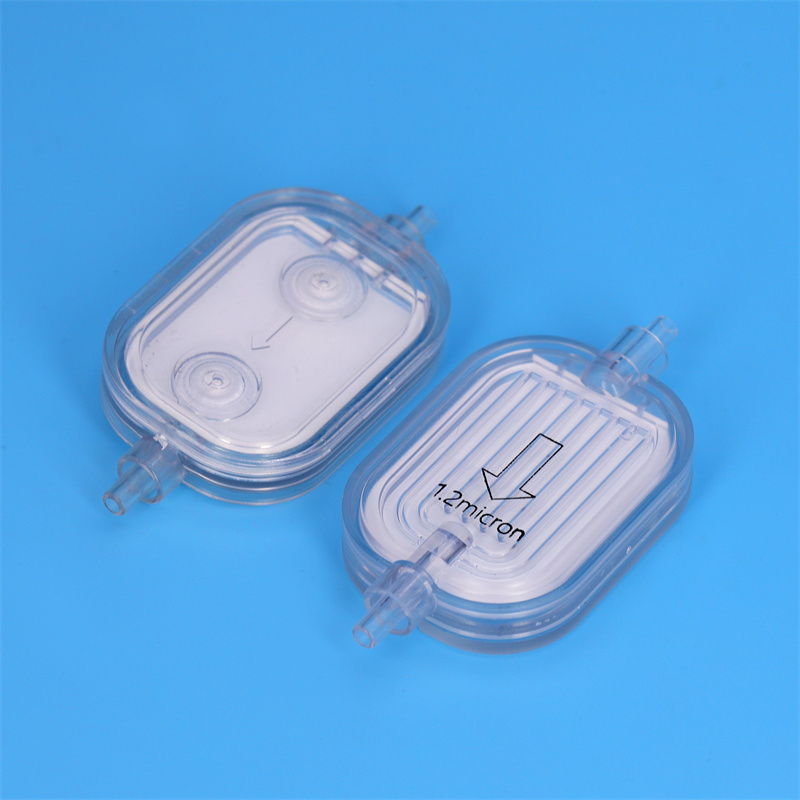

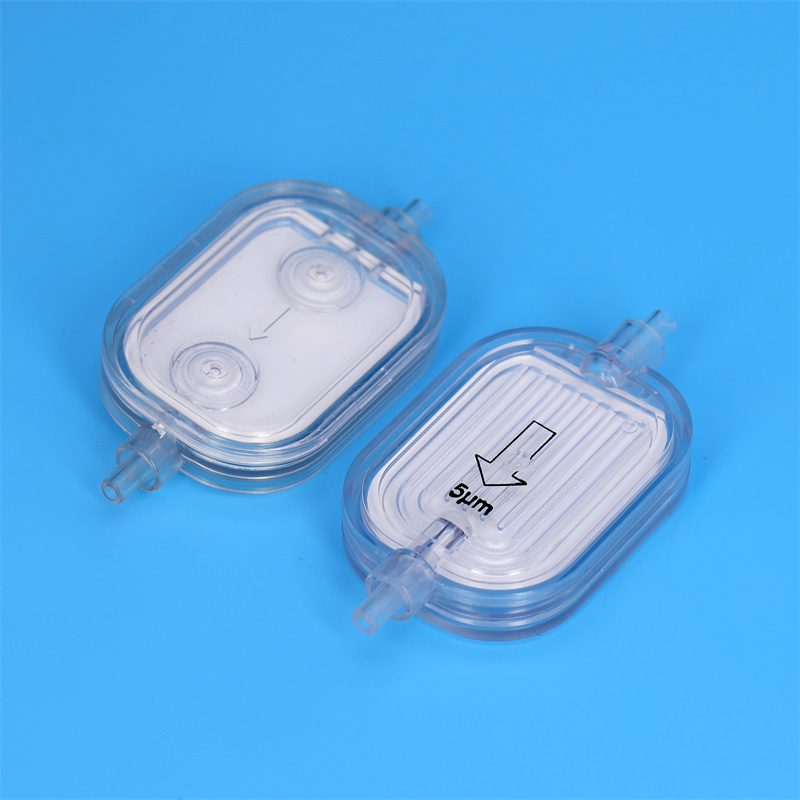

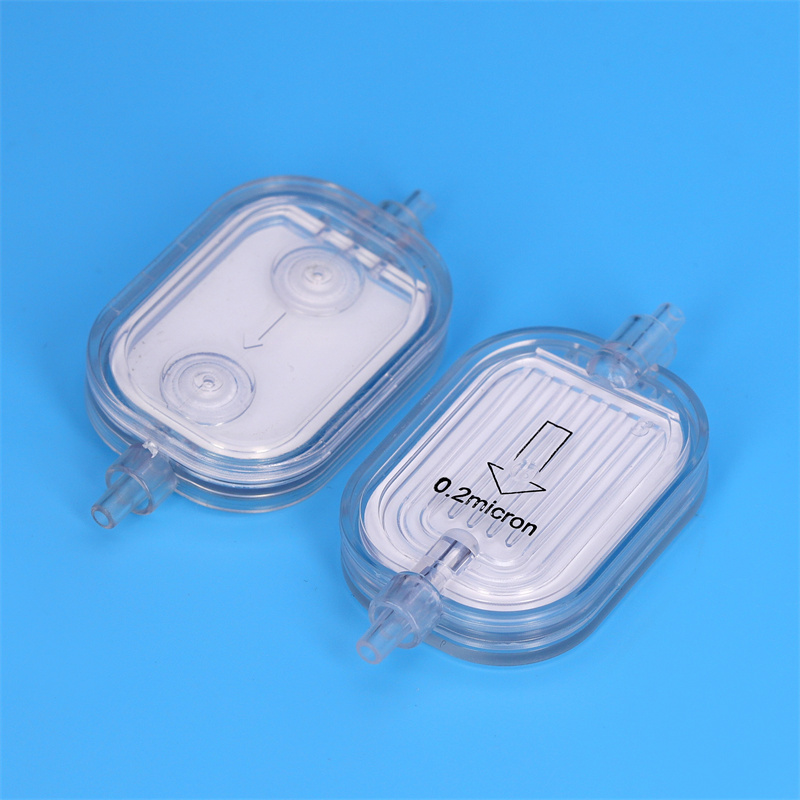

  • ZF-022

REF

ZF-022

ZF-023

ZF-024

Size

W:29mm;D:7.47mm;L:40mm

W:29mm;D:7.47mm;L:40mm

W:29mm;D:7.47mm;L:40mm

Housing Material

ABS

ABS

ABS

Filter

PES

PES

PES

Vent

PTFE

PTFE

PTFE

Port size

5µm

1.2µm

0.2µm

Weight

5.8g

5.8g

5.8g

Connector

3.2mm-3.4mm Tube

3.2mm-3.4mm Tube

3.2mm-3.4mm Tube

Water Breakthrough>40 m/ H2O>40 m/ H2O>40 m/ H2O

Water Breakthrough

0.15 - 0.3 bar

0.7 - 1.0 bar

3.7 - 4.8 bar

Water flow rate


(1000ml-1500ml)/10min

(800ml-1000ml)/10min

(180ml-210ml)/10min

Priming Volume2.12ml2.12ml2.12ml

Effective Filtration Area

7.36cm2

7.36cm2

7.36cm2

Sterilization

E.O

E.O

E.O

Applications

Gravity Infusion

Gravity Infusion

Gravity Infusion

Packing

3000pcs/carton

3000pcs/carton

3000pcs/carton
