Insufflation Filter

5 0 Reviews

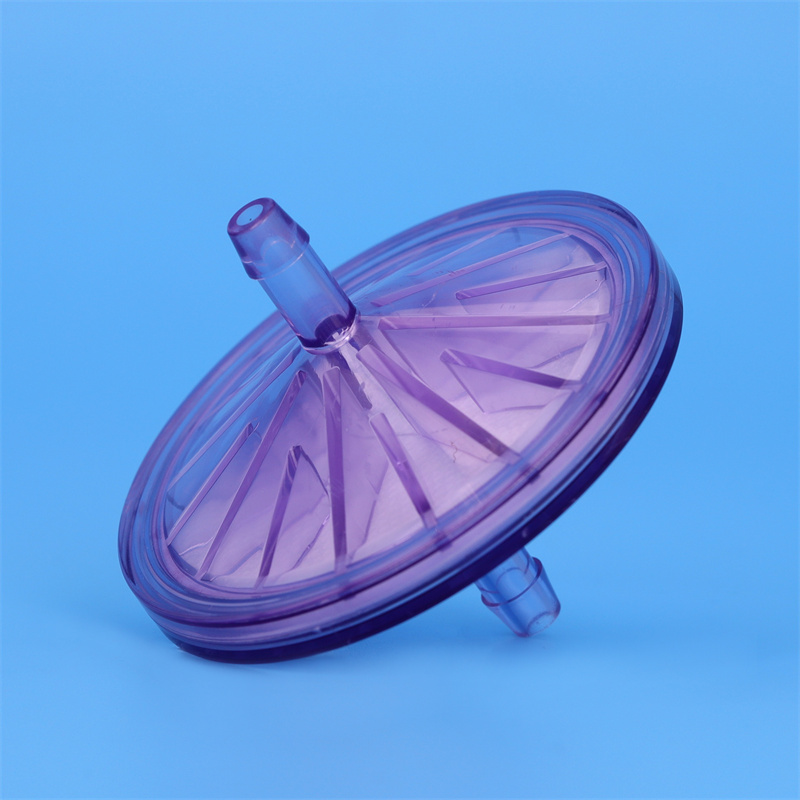

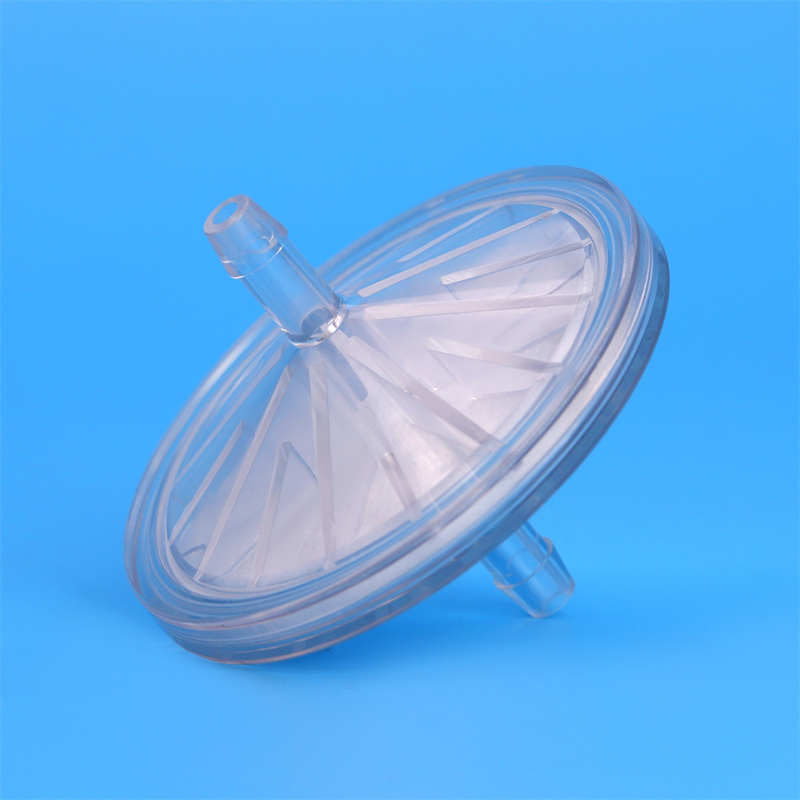

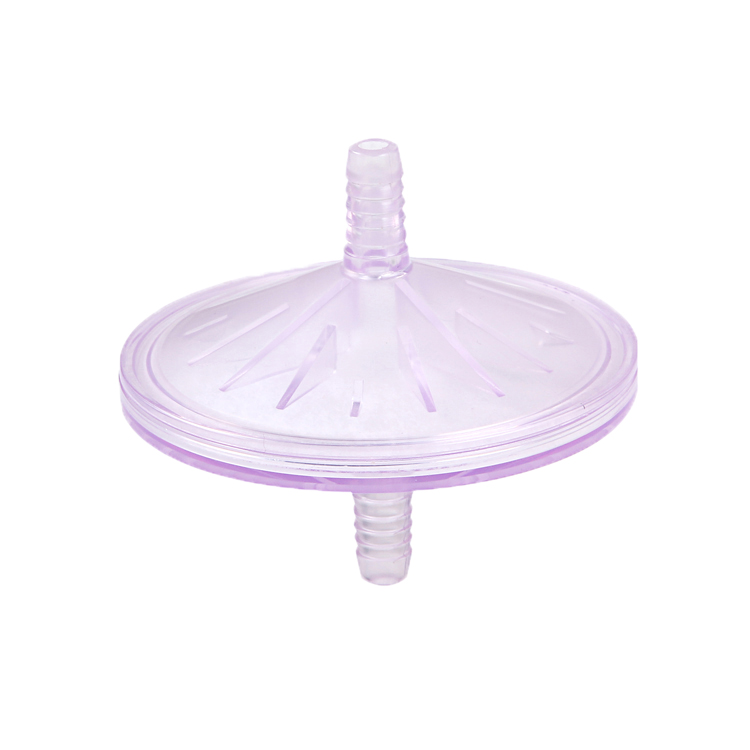

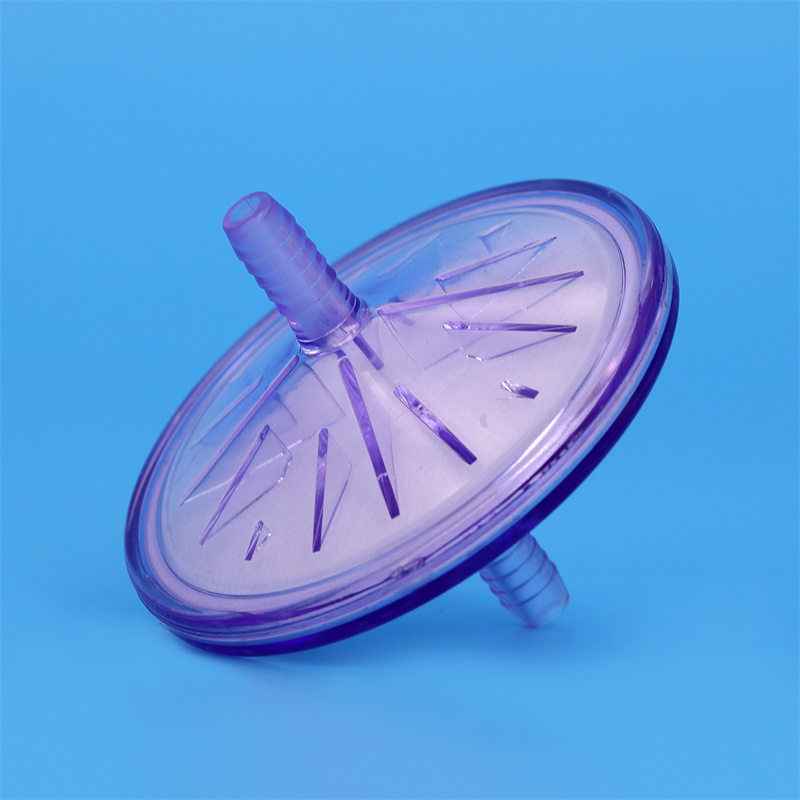

Laparoscopic filter prevents bacterial and viral contamination from possible backflow of surgical smoke, protecting both equipment and operating room personnel.Insufflatiion Filter with Tubing Set is used in conjunction with insufflators for intra-abdominal insufflation. The smoke filter is used as part of a smoke evacuation system which reduces particulate and odour causing noxious chemicals from surgical smoke generated inlaparoscopic procedures while maintaining a clear field of vision. Surgical smoke evacuation is controlled via the surgical smoke removal valve.It is indicated for use during any minimally invasive surgery involving insufflation, electro cautery, laser, or ultrasonic scalpel use. The filter comes in two colors, purple and clear, with matching tubing.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • ZF-707

REF

ZF-707

Housing Material

ABS

Color

Transparent Purple/Transparent

Media

Glass Fiber

Port Size

0.5µm

BFE

99.999%

Weight

24g

Connector

8mm Stepped Hose Barbs

Max Operating Pressure

20psi

Effective Filtration Area

28.6cm2

Max Operating Temp

60℃
