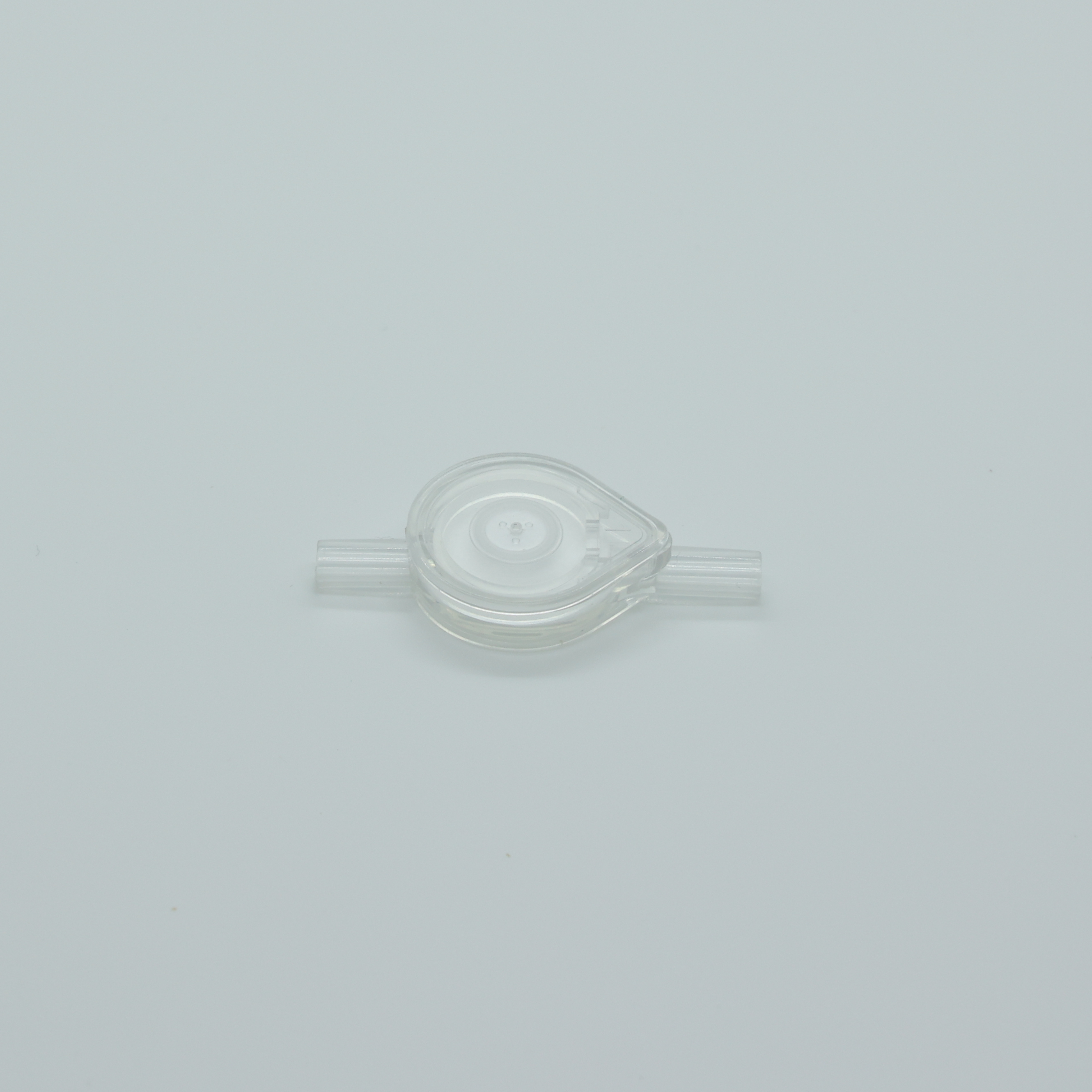

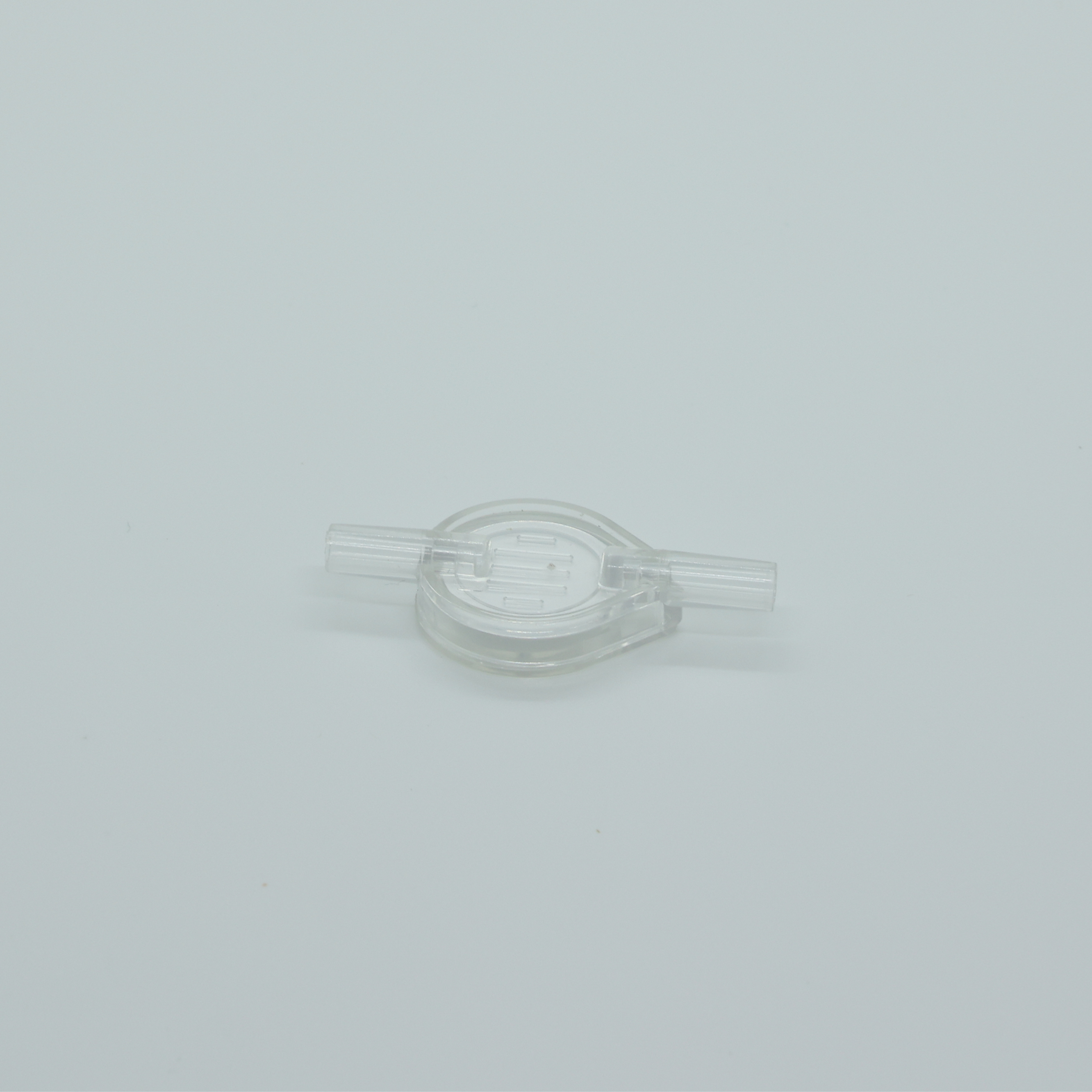

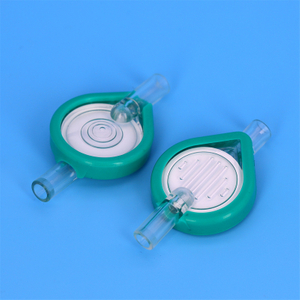

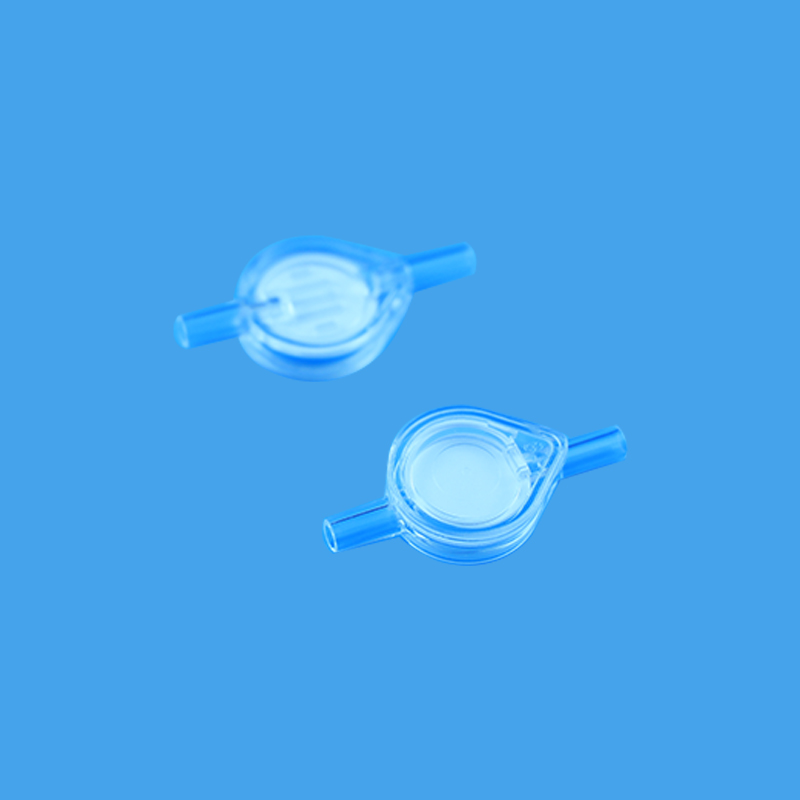

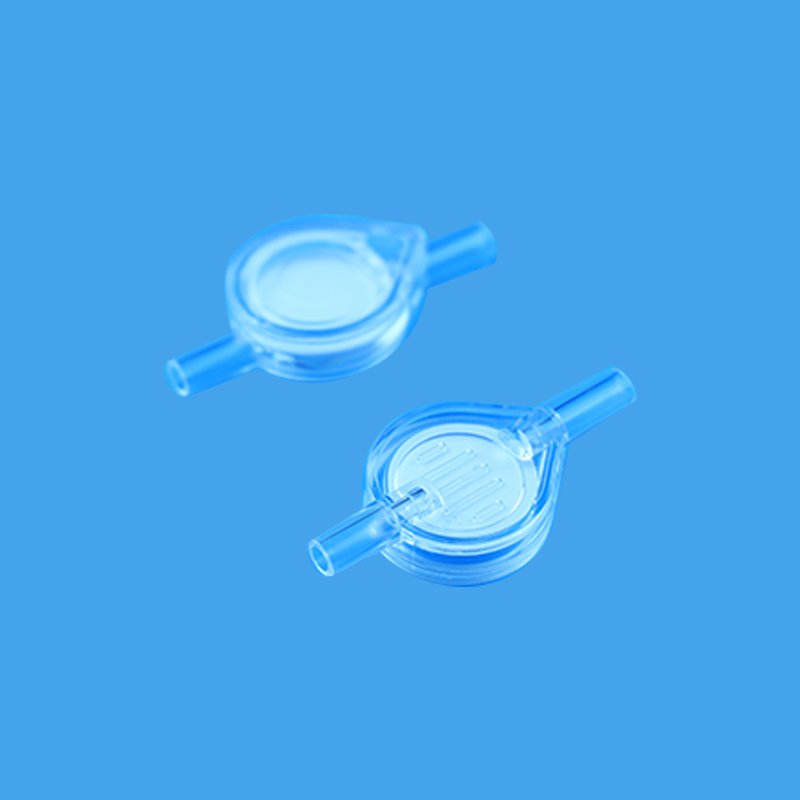

Infusion pump filter

Size

ɸ22mm

ɸ22mm

ɸ22mm

Housing Material

ABS

ABS

ABS

Filter

PES

PES

PES

Port size

5µm

1.2µm

0.2µm

Weight

1.6g

1.6g

1.6g

Connector

2.2mm-3.0mm Tube

2.2mm-3.0mm Tube

2.2mm-3.0mm Tube

Water Breakthrough

0.15 - 0.3 bar

0.7 - 1.0 bar

3.7 - 4.8 bar

Max Operating Pressure

8 bar (116 psi)

8 bar (116 psi)

8 bar (116 psi)

Effective Filtration Area

2.6cm2

2.6cm2

2.6cm2

Max Operating Temp

40℃

40℃

40℃

Sterilization

E.O

E.O

E.O

Applications

Pressure Infusion

Pressure Infusion

Pressure Infusion

Packing

5000pcs/carton

5000pcs/carton

5000pcs/carton
