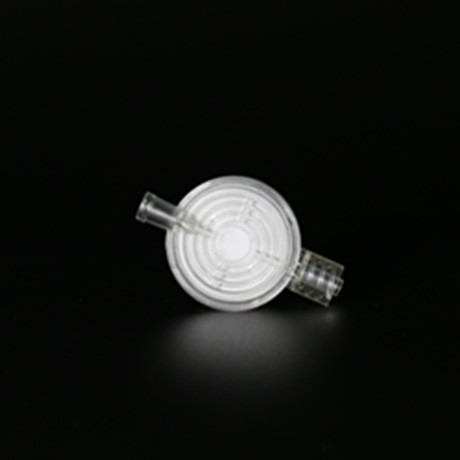

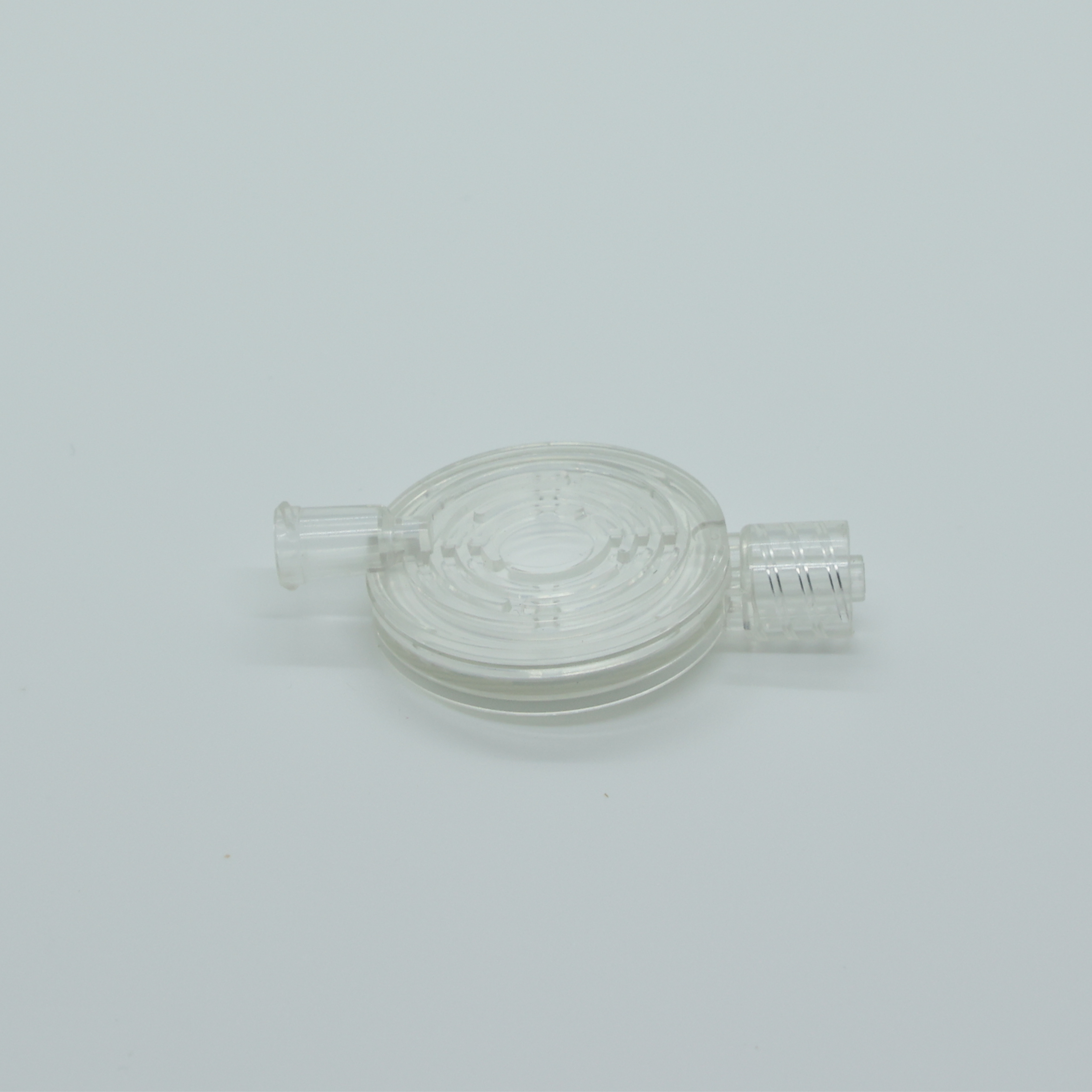

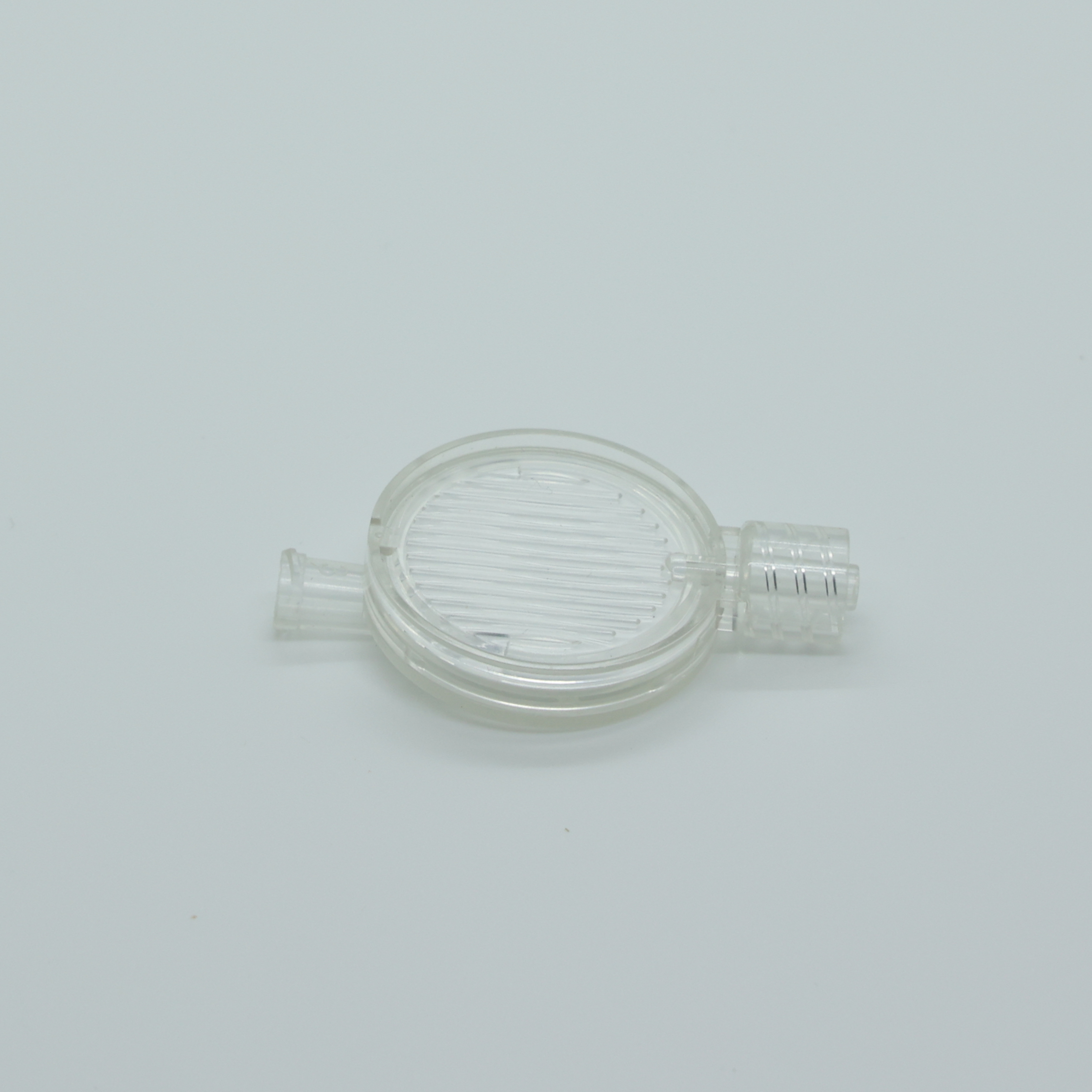

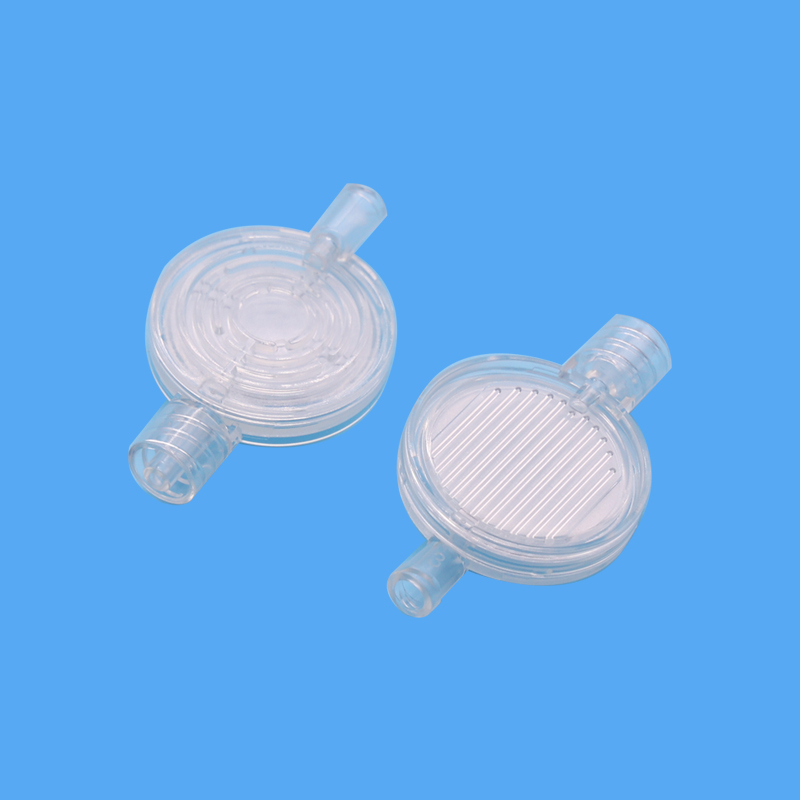

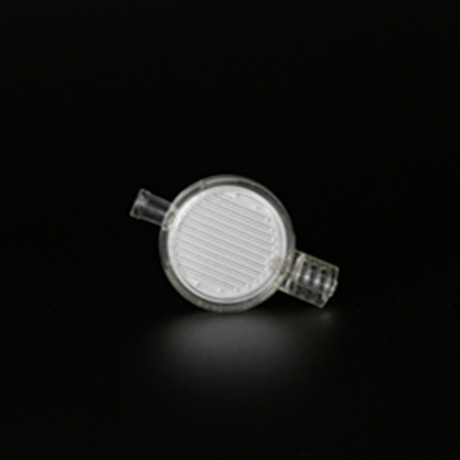

Epidural filter
5 0 ReviewsEpidural filter is particularly suitable for the
following filtration applications:
Ampoule drug injection
Epidural anesthesia, local anesthesia
Intraocular injectables
TPN(Total Parenteral Nutrition) solutions additives
Low volume pain control
Small volume sterilization
Pharmacy admixtureQuantity:
-
ZF-167
REF
ZF-WRQ-022
ZF-WRQ-023
ZF-WRQ-024
Size
ɸ31mm
ɸ31mm
ɸ31mm
Housing Material
ABS
ABS
ABS
Filter
PES
PES
PES
Port size
5µm
1.2µm
0.2µm
Weight
4.6g
4.6g
4.6g
Connector
IN: Female luer lock
OUT: Male luer lock
IN: Female luer lock
OUT: Male luer lock
IN: Female luer lock
OUT: Male luer lock
Max bursting pressure 8 bar (116 psi) 8 bar (116 psi) 8 bar (116 psi) Max operating temp 40℃ 40℃ 40℃ Min Water Bubble Point 0.15 - 0.3 bar 0.7 - 1.0 bar 3.7 - 4.8 bar Priming Volume
1.28ml
1.28ml
1.28ml
Effective Filtration Area
5.72cm2
5.72cm2
5.72cm2
Sterilization
E.O
E.O
E.O
Applications
Epidural surgery
Epidural surgery
Epidural surgery
Packing
3000pcs/carton
3000pcs/carton
3000pcs/carton
REF
ZF-WRQ-022
ZF-WRQ-023
ZF-WRQ-024
Size
ɸ31mm
ɸ31mm
ɸ31mm
Housing Material
ABS
ABS
ABS
Filter
PES
PES
PES
Port size
5µm
1.2µm
0.2µm
Weight
4.6g
4.6g
4.6g
Connector
IN: Female luer lock
OUT: Male luer lock
IN: Female luer lock
OUT: Male luer lock
IN: Female luer lock
OUT: Male luer lock
Max bursting pressure 8 bar (116 psi) 8 bar (116 psi) 8 bar (116 psi) Max operating temp 40℃ 40℃ 40℃ Min Water Bubble Point 0.15 - 0.3 bar 0.7 - 1.0 bar 3.7 - 4.8 bar Priming Volume
1.28ml
1.28ml
1.28ml
Effective Filtration Area
5.72cm2
5.72cm2
5.72cm2
Sterilization
E.O
E.O
E.O
Applications
Epidural surgery
Epidural surgery
Epidural surgery
Packing
3000pcs/carton
3000pcs/carton
3000pcs/carton
-
