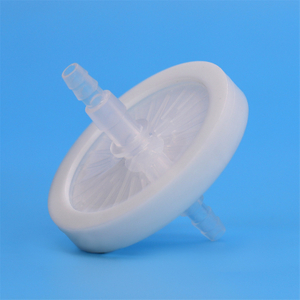

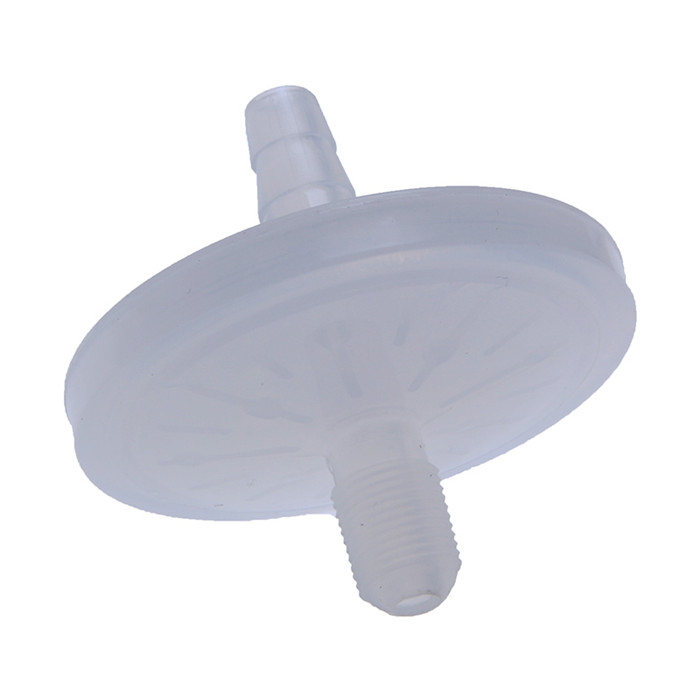

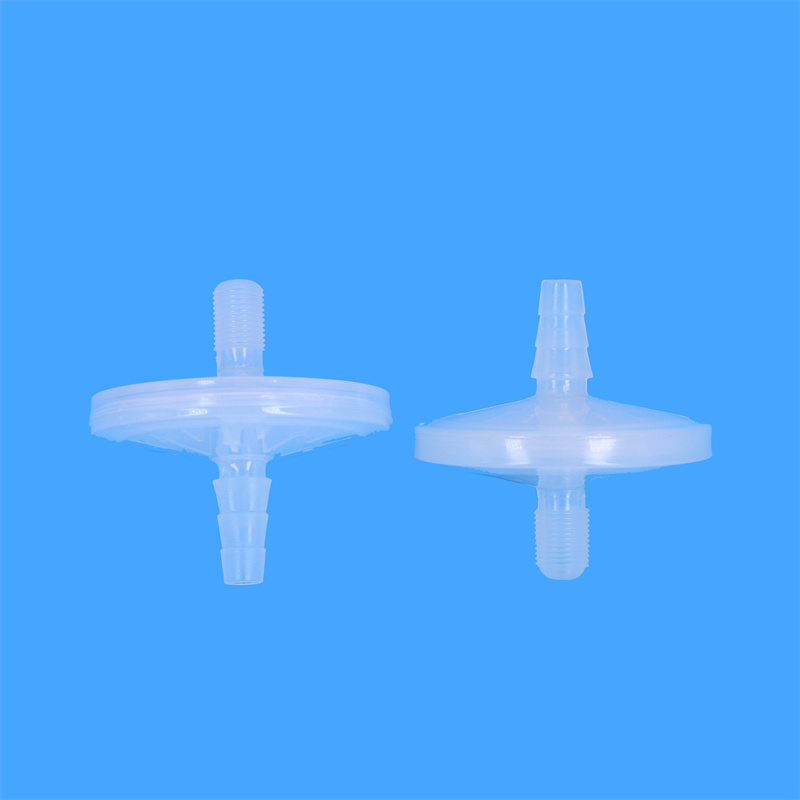

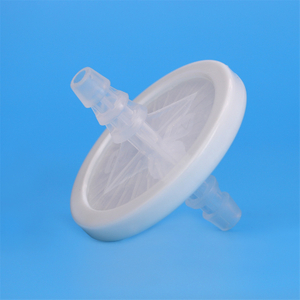

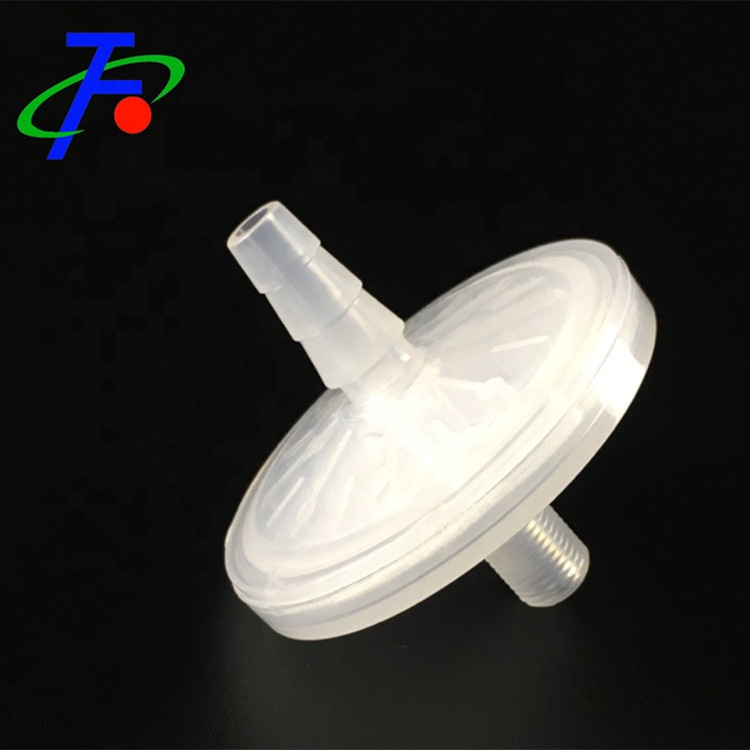

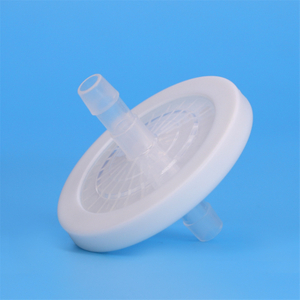

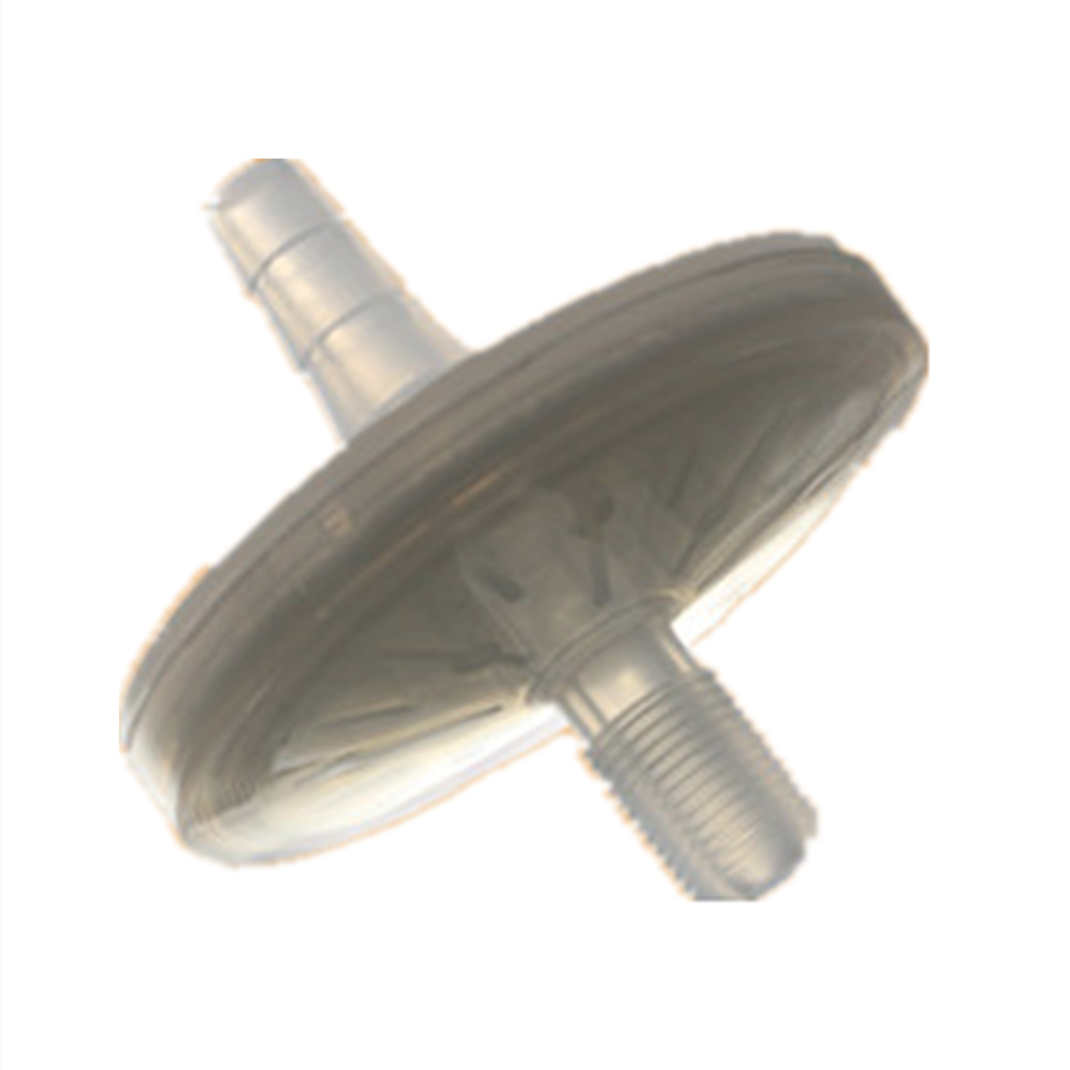

Air vent filter
5 0 ReviewsZHENFU Air vent filters protect the interior environment and the atmosphere from contaminants. This filter family is essential for the protection of devices/electronics from aerosols or liquid intrusion.It can be used as a car air intake filter and a three-stage filter for an oxygen concentrator.Filters made of PP are autoclavable at 135℃ (275℉ for 30 minutes and can also be used at 142℃ (287.6℉) at a pressure differential of less than 0.3 bar (4.35 psi), Sterilize by steam in situ procedure for 30 minutes.The connector of the filter can be customized, and the gas collection port can be added.Quantity:
-

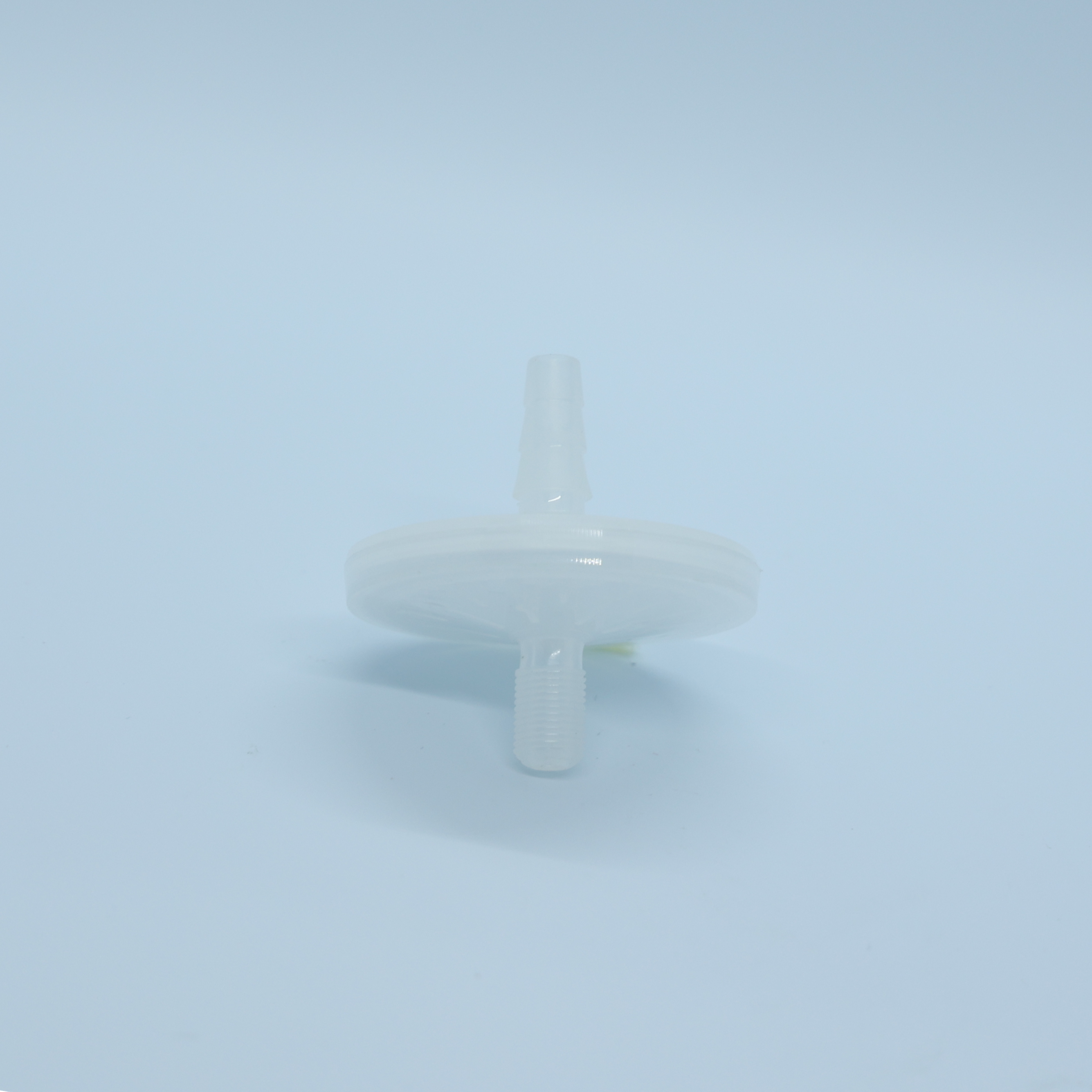

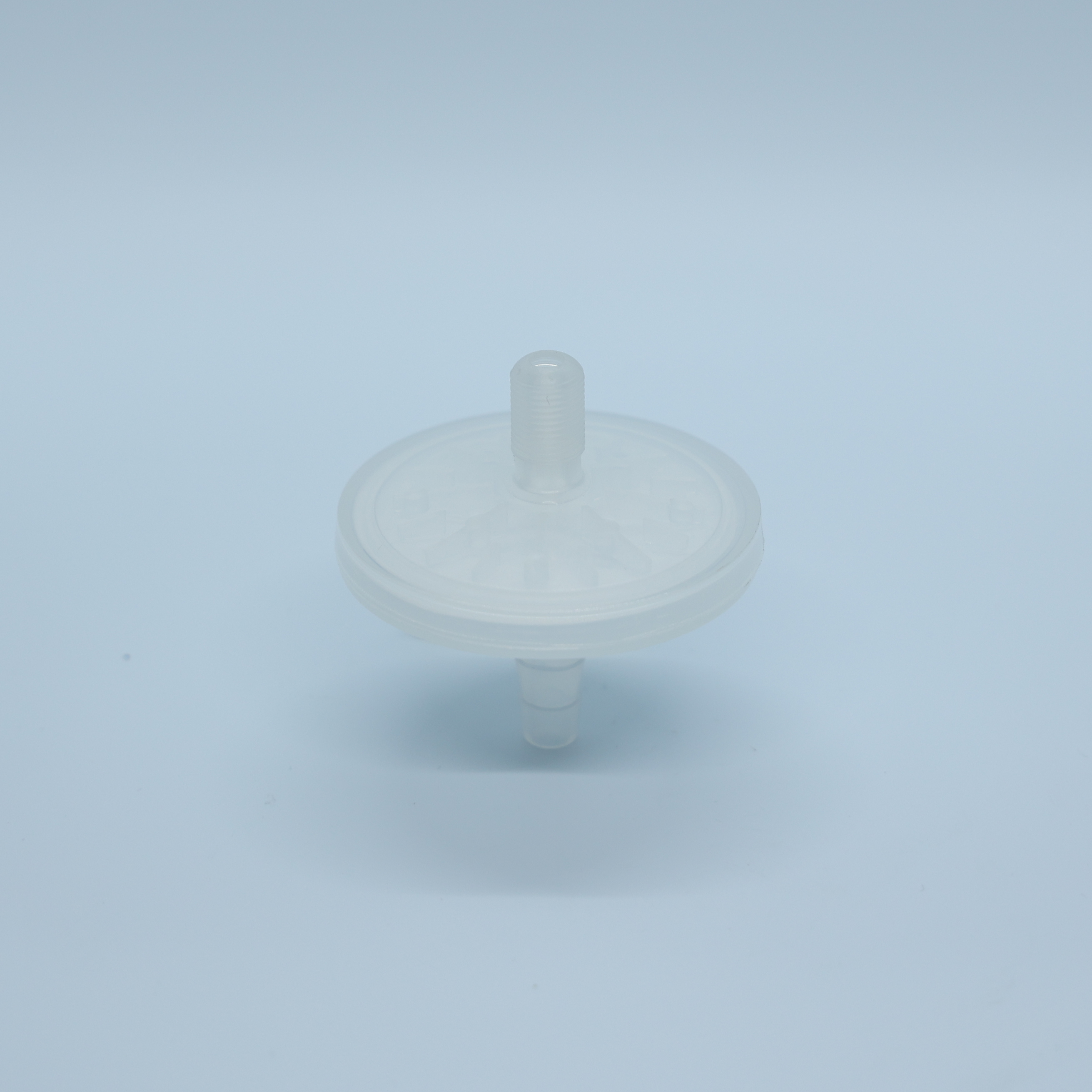

ZF-156
REF
ZF-156
Housing Material
PP
Media
PP/Glass Microfibre Media
BFE
99.999%
Port Size
0.3µm
Weight
10.5g
Connector
5.5mm-9.5mm Stepped Hose Barbs- 1/8 G Screw Thread 10 mm
Max Operating Pressure
20psi
Effective Filtration Area
15.2cm2
Max Operating Temp
60℃
Package
1000pcs/carton
